3.5inch LCD Shield Case SmokeyWhite

Ürün Açıklaması

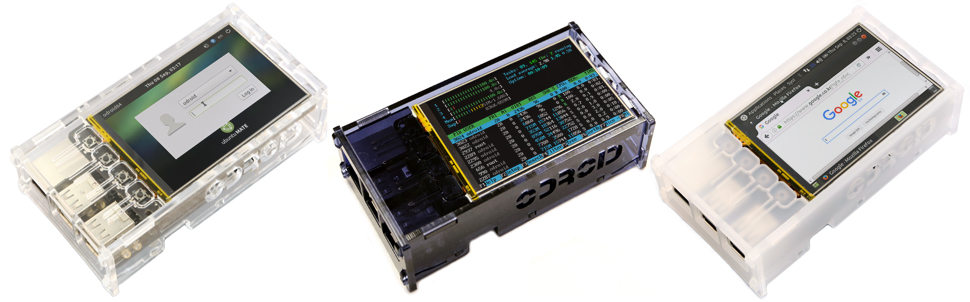

Laser acrylic enclosure forthe 3.5inch LCD Shield.- Dimension : 126 x 68 x 35 mm(assembled)- Weight : 56g approx.- Color : Smoky Blue, Smoky White and Clear- Compatible with C1/C1+/C2Package includeA.B.C.D.E.F. Acrylic piecesG. 3 x 5 mm male-female hex PCB spacers (metal)H.1 x 5 mm female hex spacer (metal)I. 4 x 5 mm screwsAssembly GuideStep 1Peel the protective backing off both sides of all the laser-cut pieces.Step 2Add the spacers(G) with screws(I) on the piece (D).Step 3Add the spacer(H) with screw(I) on the piece (D).Check the right point again.Step 4Alight the above part with ODROID-C2 or ODROID-C1+ which is 3.5inch Touchscreen Shield mounted.Step 5Assemble the piece(E).Step 6Assemble the piece(A).Step 7Assemble the piece(C).Step 8Please take more special care for the process from here. You might damage the acrylic piece.Hang the top side of the piece(F) first. The round curve is the bottom side.Step 9Assemble the bottom side of the piece(F) gently.Please check the disassemble guide below.Step 10Hang the top side of the pice(B) first. The round curve is the bottom side.Step 11Assemble the bottom side of the piece(B) gently.Please check the disassemble guide below.The eMMC connector and MicroSD Card slot is open.Tip! Disassemble Guide 1Hold the locking part as picture beside.Disassemble Guide 2Lift the bottom part from the locking just for 1-2mmCaution!!If you lift it up to much, it might damage the locking part.Disassemble Guide 3Release it from the locking.
