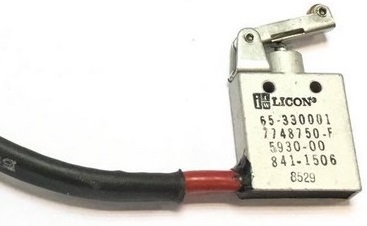

5930-00-841-1506 Anahtar

Ürün Açıklaması

Technical Data | NSN 5930-00-841-1506CharacteristicSpecificationsNONPILE-UP CONTACT ARRANGEMENT1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNITMAXIMUM VOLTAGE RATING IN VOLTS250.0 AC AND 28.0 DCCONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE7.500 AMPERES INDUCTIVE DC AND 10.000 AMPERES RESISTIVE ACBODY STYLE23M HOLE MOUNTEDCENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUMBODY LENGTH0.850 INCHES NOMINALBODY WIDTH0.335 INCHES MAXIMUMBODY HEIGHT0.825 INCHES MAXIMUMOVERALL LENGTH0.850 INCHES NOMINALOVERALL WIDTH0.335 INCHES MAXIMUMOVERALL HEIGHT1.610 INCHES MAXIMUMACTUATOR STYLE47 ROLLER ARMACTUATOR LENGTH0.531 INCHES MINIMUM AND 0.593 INCHES MAXIMUMACTUATOR FREE POSITION HEIGHT0.785 INCHES MAXIMUMACTUATOR ROLLER DIAMETER0.190 INCHES NOMINALTERMINAL TYPE AND QUANTITY2 WIRE LEADSWITCH ACTUATING FORCE16.0 OUNCES MAXIMUMSWITCH RELEASE FORCE5.0 OUNCES MINIMUMACTUATOR MOVEMENT0.115 PRETRAVEL INCHES MAXIMUM AND 0.025 OVERTRAVEL INCHES MINIMUM AND 0.058 DIFFERENTIAL INCHES MAXIMUMINCLOSURE TYPEHERMETICALLY SEALEDMOUNTING METHODUNTHREADED HOLEUNTHREADED MOUNTING HOLE DIAMETER0.086 INCHES MINIMUM AND 0.090 INCHES MAXIMUMFEATURES PROVIDEDACTUATOR SEALIII CASE MATERIALMETAL
