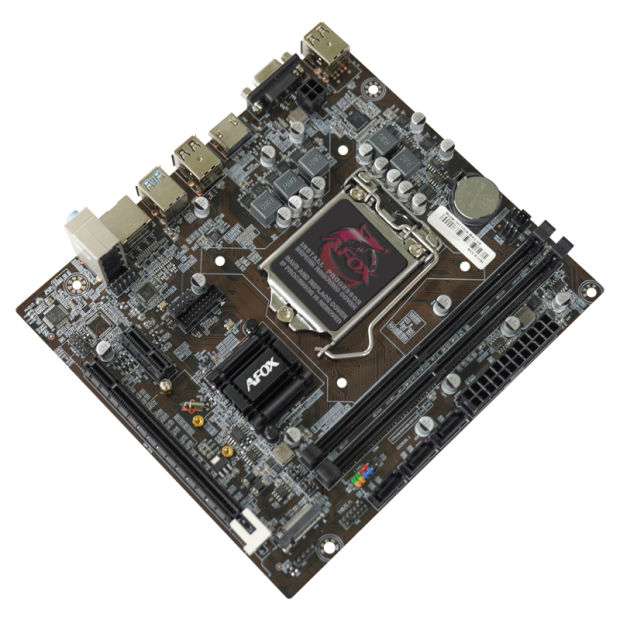

Afox IH110D4-MA2-V4 Sc-1151 DDR4 3600Mhz M2 Gen3 VGA HDMI mATX INTEL Anakart

Ürün Açıklaması

Afox IH110D4-MA2-V4 Sc-1151 DDR4 3600Mhz M2 Gen3 VGA HDMI mATX INTEL Anakart PlatformINTEL Socket 1151Model NameIH110D4-MA2-V4ChipsetIntel® H110 CPU SupportsIntel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® ProcessorsSupports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)FSB2133 / 2400 MHzMemoryDual Channel DDR4 2133 / 2400 ?7th?/ MHzDimm2 x Memory Slots (Max. capacity of system memory 32GB)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics supportPCI/PCI-E Slots1 x PCI Express x16 3.0 slot1 x PCI Express x1 slotSATA3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4/SATA )IDEN/AAudioRealtek 662 on board, Supports 6-channel audio-outLANRealtek RTL8111 Gigabit Ethernet on boardWake-On-LANBack Panel I/Os1 x HDMI Port1 x D-Sub (VGA) Port2 x USB 3.0 Ports4 x USB 2.0 Ports1 x RJ-45 LAN Port with LED3 x HD Audio Jacks (Line in / Front Speaker / Microphone)ON-Board Pinheaders/Connectors1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG1 x TPMBIOSUEFI BIOSForm FactorMicro-ATX (17*19cm)Mounting4 mounting holesAccessories1 x SATA II cable1 x I/O Rear Panel1 x User Manual1 x Driver CD
