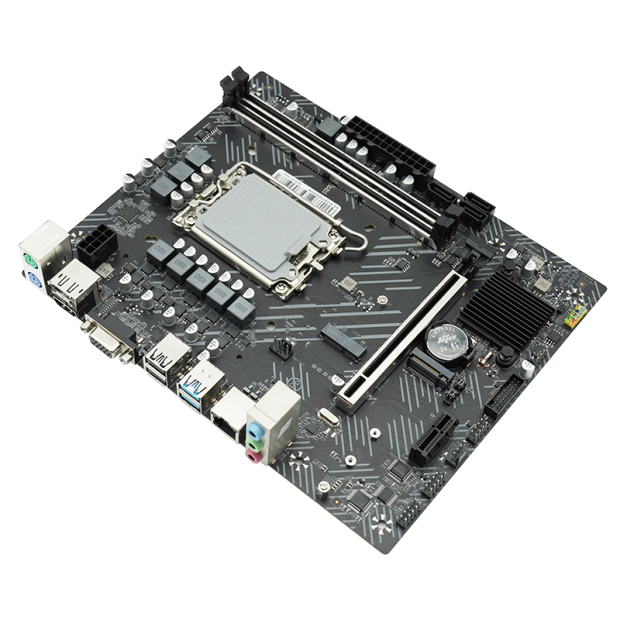

Afox IH81D3-MA2-V2 Sc-1150 DDR3 1600Mzh M.2 Gen3 VGA HDMI mATX INTEL Anakart

Ürün Açıklaması

Afox IH81D3-MA2-V2 Sc-1150 DDR3 1600Mzh M.2 Gen3 VGA HDMI mATX INTEL Anakart PlatformINTEL Socket 1150Model NameIH81-MA2ChipsetIntel® H81CPU SupportsIntel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)FSB1066 / 1333 / 1600 / 1860MHzMemoryDual Channel DDR3 1066 / 1333 / 1600 / 1860MHzDimm2 x Memory Slots (Max. capacity of system memory 16GB)Onboard GraphicsIntegrated Graphics ProcessorPCI/PCI-E Slots1 x PCI Express x16 2.0 slot, 1 x PCI Express x1 slotSATA2 x SATA3, 2 x SATA2IDEN/AAudioRealtek 662 on board, Supports 6-channel audio-outLANRealtek RTL8111 Gigabit Ethernet on boardBack Panel I/Os1 x HDMI Port1 x D-Sub (VGA) Port2 x USB 3.0 Ports4 x USB 2.0 Ports1 x RJ-45 LAN Port with LED3 x HD Audio Jacks (Line in / Front Speaker / Microphone)ON-Board Pinheaders/Connectors1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)1 x Front Panel Audio pinheaderBIOSUEFI BIOSForm FactorMicro-ATX (17*19cm)Mounting4 mounting holesAccessories1 x SATA II cable1 x I/O Rear Panel1 x User Manual1 x Driver CD
