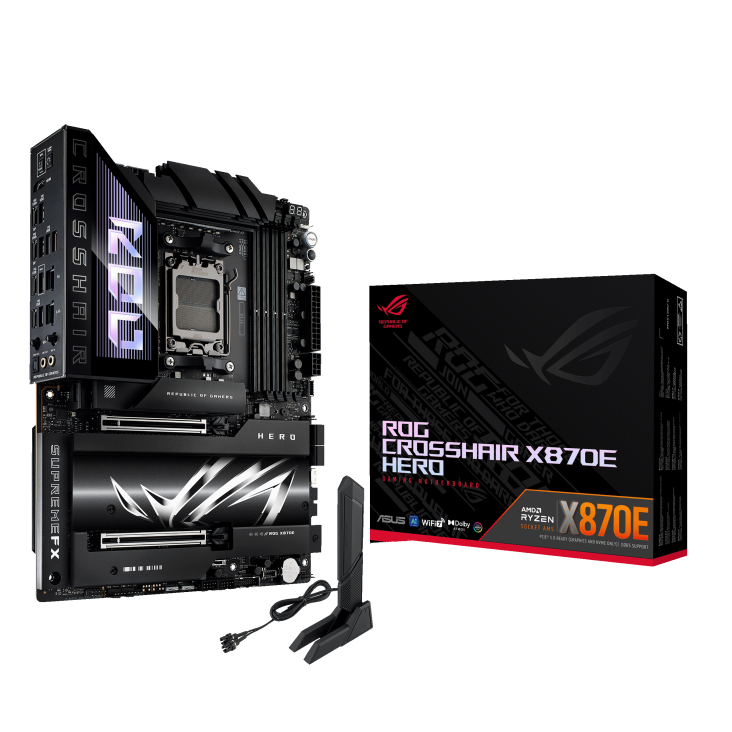

Asus ROG CROSSHAIR X870E HERO Sc-AM5 X870E DDR5 8400Mhz 5xM2 WIFI7 2.5Gbit ATX AMD Anakart
Ürün Açıklaması
Asus ROG CROSSHAIR X870E HERO Sc-AM5 X870E DDR5 8400Mhz 5xM2 WIFI7 2.5Gbit ATX AMD Anakart CPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors** Refer to https://www.asus.com/support/download-center/ for CPU support list.ChipsetAMD X870EMemory4 x DIMM slots, max.192GB, DDR5Supports up to8200+MT/s(OC) with Ryzen™ 9000 Series Processors,8600+MT/s(OC) with Ryzen™ 8000 Series Processors,8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC, Un-buffered Memory*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)NitroPath DRAM TechnologyASUS Enhanced Memory Profile (AEMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x HDMI™ port*2 x USB4® (40Gbps) ports support USB Type-C® display outputs**Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.VGA resolution support depends on processors' or graphic cards' resolution.*Supports 4K@60Hz as specified in HDMI 2.1.**Supports max. 4K@60Hz as specified in DisplayPort 1.4aExpansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.*** When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)AMD Ryzen™ 8500 & 8300 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Rel...
