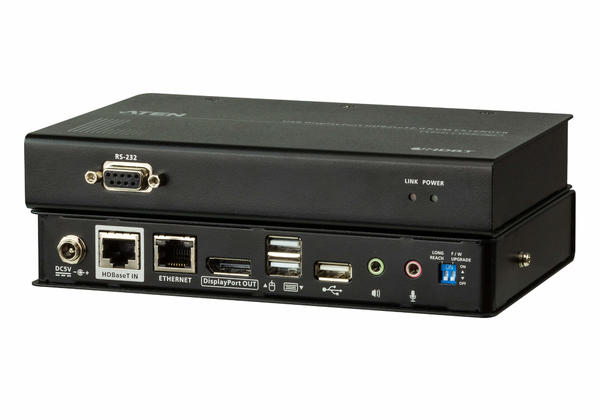

Aten CE920 100 Mt DISPLAY PORT to CAT USB 4K HDBaeT 2.0 DISPLAY PORT Mesafe Uzatma Cihazı

Ürün Açıklaması

USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)Supports HDBaseT™ 2.0 technology- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions- Status detection and LED indication for HDBaseT™ signal transmission on remote unitEDID Buffer for smooth power-up and the highest quality displayLong distance with superior video quality- HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)- HDBaseT™ Long-Reach mode up to 1080P @ 150mLong Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snapUSB 2.0 full speed ports – ensures fast transmission speeds for peripheralsHDCP CompatibleSupports individual 2-channel stereo audio for high-quality audio applicationsSupports PC wakeup function via single pushbuttonBuilt-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) FunctionCE920LCE920RConnectorsConsole PortsN/A1 x DisplayPort Female (Black)3 x USB Type A Female1 x Mini Stereo Jack Female (Green)1 x Mini Stereo Jack Female (Pink)1 x RJ-45 Female (Black)KVM Ports1 x DisplayPort Female (Black)1 x USB Type B Female (White)1 x Mini Stereo Jack Female (Green)1 x Mini Stereo Jack Female (Pink)1 x RJ-45 Female (Black)N/ARS-2321 x DB-9 Female (Black)1 x DB-9 Male (Black)Power1 x DC Jack with locking1 x DC Jack with lockingUnit To Unit1 x RJ-45 Female (Black)1 x RJ-45 Female (Black)LEDsPower1 (Green)1 (Green)Link1 (Orange)1 (Orange)Video OutputN/A1 (Orange)SwitchesLong Reach Mode Switch1 x Slide Switch1 x Slide SwitchFirmware Upgrade1 x Slide Switch1 x Slide SwitchPushbuttonsWakeup buttonN/A1 x Push buttonVideoUp to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)1080P@100m (Cat 5e/6/6a)*4K supported:4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)1080P@100m (Cat 5e/6/6a)*4K supported:4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)...
