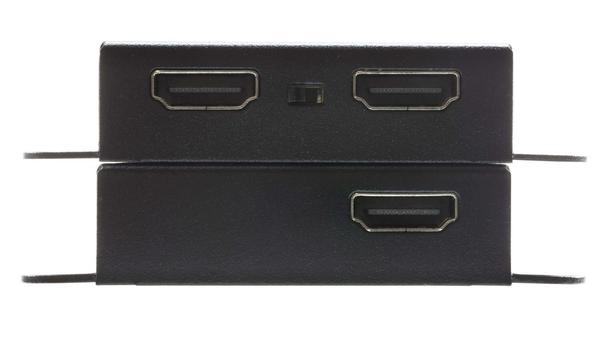

Aten VE1821 40 Mt HDMI to RJ45 4K HDMI Mesafe Uzatıcı

Ürün Açıklaması

Aten VE1821 40 Mt HDMI to RJ45 4K HDMI Mesafe Uzatıcı Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e / 6 cableUltra lightweight, palm-sized enclosure for easy mounting or placement in tight spacesCrystal clear 4K HDMI transmission with zero latency across up to 40 m via a Cat 6 cable (ATEN 2L-2910 recommended) /30 m via a Cat 5e cableLocal HDMI output port on the transmitter unit – enables cascading or users to monitor the UHD signal being extended to the receiverBuilt-in EDID switch – users can control which EDID is taken from either displayEDID Copying Mode – HDMI source can be displayed at the optimal resolution based on the capabilities of the connected displayIR signal transmission – the source device connected to the transmitter can be seamlessly controlled from the receiver sidePoC (Power over Cable) technology – power can be delivered from the transmitter to the receiver via a Cat 5e / 6 cable to eliminate the need for a bulky external power supplyHDMI (3D, Deep Color, 4K); HDCP 1.4 compliantBuilt- in ESD protectionPlug-and-play – no additional software needed Input Resolutions640x480 @ 60/75 Hz1920x1080 @ 60 Hz800x600 @ 60/75 Hz1920x1200 @ 60 Hz1024x768 @ 60/75 Hz480p @ 60 Hz (4:3)/(16:9)1280x800 @ 60 Hz576p @ 50 Hz (4:3)1280x1024 @ 60/75 Hz640x480 @ 60Hz (4:3)1400x1050 @ 60 Hz720p @ 50/60 Hz1440x900 @ 60 Hz1080p @ 24/25/30/50/60 Hz1600x1200 @ 60 Hz3840x2160p @ 24/25/30 Hz1680x1050 @ 60 Hz4096x2160p @ 24/25/30 HzFunctionVE1821RVE1821TVideo InputInterfacesN/A1 x HDMI Type A Female (Black)ImpedanceN/A100 ΩMax. DistanceN/A3 mVideo OutputInterfaces1 x HDMI Type A Female (Black)1 x HDMI Type A Female (Black)Impedance100 Ω100 ΩMax. Distance3 m3 mVideoMax. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)Max. Pixel Clock340 MHz340 MHzComplianceHDMI (3D, Deep Color, 4K)HDCP1.4 CompatibleHDMI (3D, Deep Color, 4K)HDCP1.4 CompatibleMax. Resolutions / DistanceUp to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910);*...
