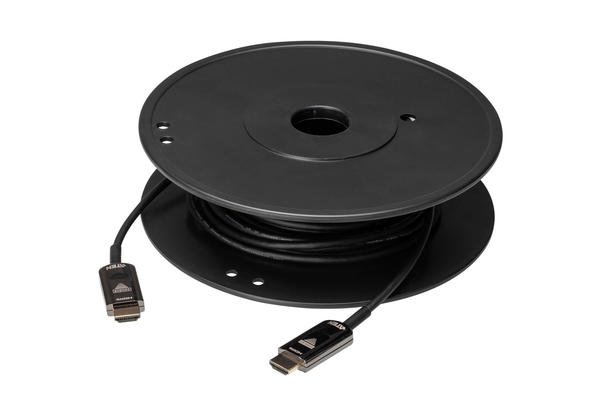

Aten VE781010 10 Mt HDMI to HDMI Erkek-Erkek True 4K Active Optical HDMI Kablo

Ürün Açıklaması

Aten VE781010 10 Mt HDMI to HDMI True 4K Active Optical HDMI Kablo Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)HDMI (3D, Deep Color, True 4K, HDR, ARC); HDCP 2.2 compliantExtends True 4K signals up to 10mReduced EMI and RFI for lower noise interferenceHigh data transfer rate of 18 GbpsSupports multi audio channel – Dolby TrueHD and DTS-HD Master AudioRobust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)Plug-and-play Cable Length10M / 32.8ftCable TypeHybrid type with optical fiber (OM3) and copper wireVideo InputInterfaces1 x HDMI 19-pin Type-A MaleVideo OutputInterfaces1 x HDMI 19-pin Type-A MaleVideoMax. Data Rate18 Gbps (6 Gbps per Channel)Max. Pixel Clock600 MHz (Max.)Max. Resolutions / DistanceUp to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M*Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0*Color Depth: 30 / 36 / 48 bitComplianceHDMI (3D, Deep Color, 4K, HDR, ARC)HDCP 2.2CommunicationSignalsTMDS / HDCP 2.2 / EDID / CECAudioInputPCM 8-channel, Dolby Digital True HD, DTS-HD Master AudioOutputPCM 8-channel, Dolby Digital True HD, DTS-HD Master AudioConductorConstruction7 x Tinned Copper wire strand4 x OM3 Optical Fiber (50/125um)NotificationBend Radius: 20mm (Min.)Compression Load Resistance: Max. 50kg (500N)Cable Filler: KevlarCable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE* NO external power requiredCertificationsCertificationsSafety and Emission: CE / FCC / RoHS / REACH / UL VW-1EMC Class-A / Class-BPower ConsumptionDC5.0V:0.25W:0.05ABTUJacketedMaterialPVC (85P)Color: BlackEnvironmentalOperating Temperature0°C to 50°C (32? to 122?)Storage Temperature-20°C to 70°C (-4? to 158?)Humidity0 - 85% RH, Non-CondensingPhysical PropertiesHousingConnector Case: Zinc AlloyWeight0.35 kg ( 0.77 lb )Cable Outer Dimension4.5mm (± 0.2mm) 1x VE781010 10M True 4K HDMI Active Optical Cable1x Installation Notice
