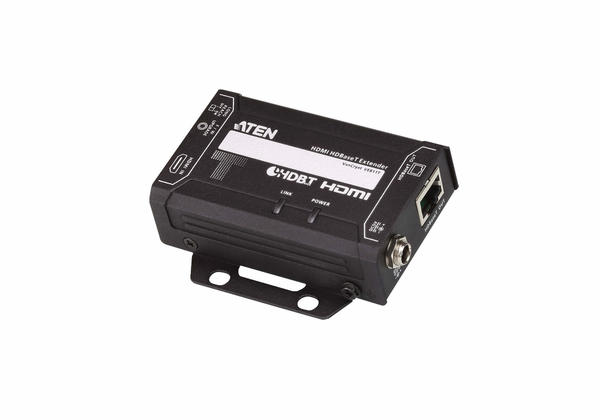

Aten VE811R 100 Mt HDMI to CAT HDBaseT Class A Alıcı HDMI Sinyal Uzatma Cihazı

Ürün Açıklaması

ATEN VE811R 100 Mt HDMI HDBaseT RJ-45 Sinyal Uzatma CihazıHDMI HDBaseT Sinyal Uzatma Cihazı, 100 metreHDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A) HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cableHDMI (3D, Deep Color, 4K)HDCP 2.2 compatibleSupports resolutions of up to Ultra HD 4kx2k and 1080p Full HDSupports wide screen formatPlug and play – no software requiredBuilt- in 8KV/ 15 KV ESD protectionRack Mountable Video InputInterfaces1 x HDMI Type A Female (Black)Impedance100 ?Max. Distance1.8 mVideoMax. Data Rate10.2Gbps (3.4Gbps per lane)Max. Pixel Clock340 MHzComplianceHDMI (3D, Deep Color, 4K)HDCP CompatibleConsumer Electronics Control (CEC)Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)*4K supported:4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)AudioInput1 x HDMI Type A Female (Black)ConnectorsUnit To Unit1 x RJ-45 FemaleFirmware Upgrade1 x Mini Stereo Jack Female (Black)Power1 x DC Jack (Black) with lockingSwitchesLong Reach Mode Switch1 x Slide Switch - ON/OFFPower ConsumptionDC5V:3.77W:18BTUEnvironmentalOperating Temperature0 - 40°CStorage Temperature-20 - 60°CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalWeight0.16 kg ( 0.35 lb )Dimensions (L x W x H) with bracket8.64 x 7.30 x 2.47 cm(3.4 x 2.87 x 0.97 in.)Dimensions (L x W x H) without bracket8.20 x 5.20 x 2.37 cm(3.23 x 2.05 x 0.93 in.) 1x VE811R HDMI HDBaseT Receiver1x Power Adapters1x User Instructions
