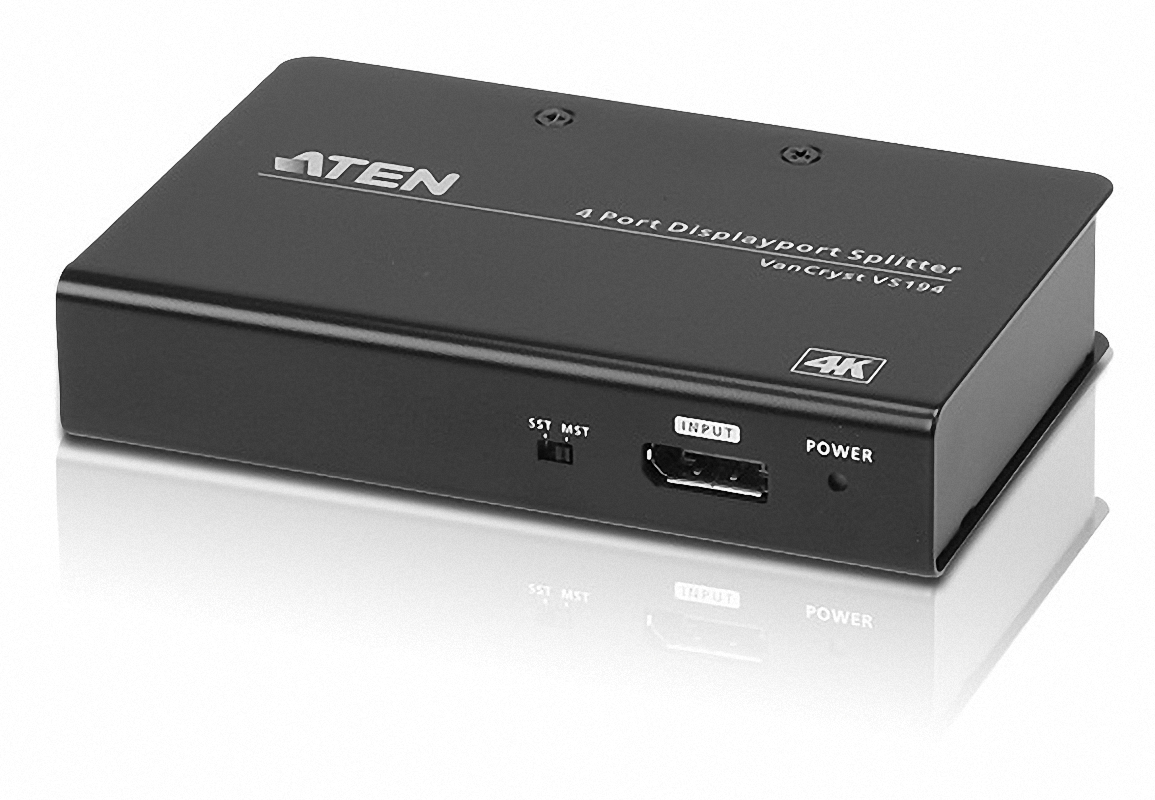

Aten VS194 1 Giriş 4 Çıkış DISPLAY PORT 4K DP 1.2a HDCP 1.3 DISPLAY PORT Görüntü Çoklayıcı Splitter

Ürün Açıklaması

Aten VS194 1 Giriş 4 Çıkış DISPLAY PORT 4K DP 1.2a HDCP 1.3 DISPLAY PORT Görüntü Çoklayıcı Splitter Connects one DisplayPort source to four DisplayPort monitorsSupports DisplayPort 1.2a; HDCP 1.3Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 HzSupports MST/ Extend Mode and SST/ Split Mode*MST/ Extend Mode:Extend a video source across 2/4 displays with a maximum resolution of 4K.SST/ Split Mode:Duplicate a single video source to 2/4 displays with a maximum resolution of 4K on each monitorSupports Linkrate: HBR2 (High Bit Rate 2)Note:* The VS192/VS194 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1. Video OutputInterfaces4 x DisplayPort Female (Black)Video InputInterfaces1 x DisplayPort Female (Black)VideoComplianceDP 1.2a; HDCP 1.3Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60HzMax. Data Rate21.6 Gbps (5.4 Gbps per lane)ConnectorsPower1 x DC JackPower ConsumptionDC5V:3.36W:44BTUEnvironmentalOperating Temperature0-40 °CStorage Temperature-20 - 60 °CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalWeight0.33 kg ( 0.73 lb )Dimensions (L x W x H)12.50 x 8.00 x 2.50 cm(4.92 x 3.15 x 0.98 in.)
