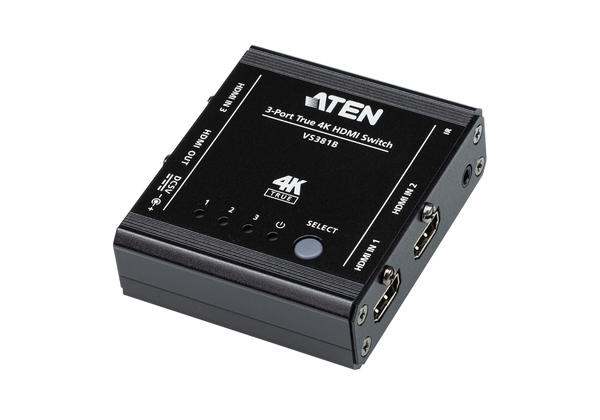

Aten VS381B 3 Port Giriş 1 Port Çıkış 4K Dişi-Dişi 4K HDMI Görüntü Çoklayıcı

Ürün Açıklaması

Aten VS381B 3 Port Giriş 1 Port Çıkış 4K Dişi-Dişi 4K HDMI Görüntü ÇoklayıcıAllows up to 3 HDMI input sources to be transmitted to 1 HDMI output displaySuperior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supportedHDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG)HDCP 2.2 compliantAuto switching mode for auto port selectionSwitching between HDMI input sources via front panel pushbuttons and IR remote controlSupports IR extensionSupports 7.1 channel audio outputClear LED indication of device statusPlug-and-play – no software installation required NoteUSB to DC cable as the main power source;In some circumstances power from HDMI maybe sufficient for the device; however, the power source from USB via USB to DC cable is recommended for device operationLEDsInput3 x HDMI-In (Green)Power1 x Power LED (Green)PushbuttonsSelect1 x push button (input selection)AudioInput3 x HDMI Type A Female (Black)Output1 x HDMI Type A Female (Black)Video InputInterfaces3 x HDMI Type A Female (Black)Impedance100 ?Max. DistanceMax 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)Video OutputInterfaces1 x HDMI Type A Female (Black)Impedance100 ?Max. DistanceMax 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)VideoMax. Data Rate18 Gbps (6 Gbps Per Lane)Max. Pixel Clock600 MHzComplianceHDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)HDCP 2.2Max. Resolution4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)ControlIR1 x Mini Stereo Jack Female (Black) / Max distance@ 5mConnectorsPower1 x DC JackPower ConsumptionDC5V:1.46W:6BTUEnvironmentalOperating Temperature0-40 °CStorage Temperature-20 - 60 °CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalWeight0.15 kg ( 0.33 lb )Dimensions (L x W x H)7.16 x 7.90 x 2.55 cm(2.82 x 3.11 x 1 in.)
