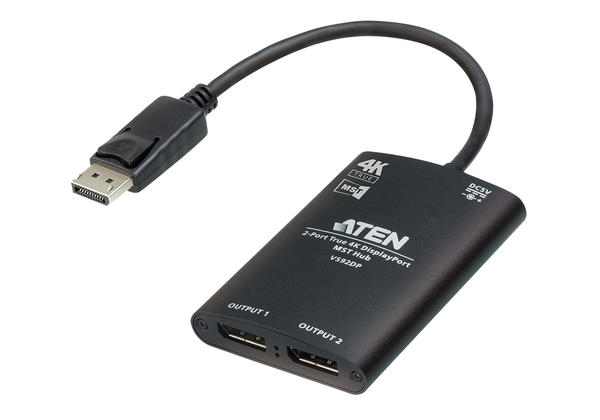

Aten VS92DP DISPLAY PORT to 2 Port DISPLAY PORT 4K True MST Görüntü Çoklayıcı

Ürün Açıklaması

Aten VS92DP DISPLAY PORT to 2 Port DISPLAY PORT 4K True MST Görüntü Çoklayıcı Distributes one True 4K source to two DisplayPort displays at the same timeAllows for Single Stream Transport (SST) or Multi-Stream Transport (MST) ModeSupports 4K resolution for dual output – up to 3840 x 2160@30Hz (4:4:4)DisplayPort 1.2; HDCP 1.3 compliantProvides Dolby TrueHD and DTS-HD Master 7.1 Audio channelHigh quality and durable aluminum enclosure LEDsStatusDisplayPort Output x 2 (Blue)Power Input x 1 (Blue)Video InputInterfaces1 x DisplayPort Male (Black)Max. Distance15cmVideo OutputInterfaces2 x DisplayPort Female (Black)Max. DistanceMax 3m at 3840x2160@60Hz (4:4:4) - Single outputMax 3m at 3840x2160@30Hz (4:4:4) - Dual output (MST/SST mode)VideoMax. Data Rate21.6Gbps (5.4Gbps per lane)ComplianceDisplayPort 1.2 / HDCP 1.3Max. ResolutionUp to 3840x2160@60Hz (4:4:4, 8 bits)Power Consumption2WATT(MAX)BTUConnectorsUSB PortUSB Type Micro B x 1 (Firmware upgrade & power source)EnvironmentalOperating Temperature0-40 °CStorage Temperature-20 - 60 °CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetal (aluminum)Weight0.09 kg ( 0.2 lb )Dimensions (L x W x H)8.80 x 6.00 x 15.00 cm
