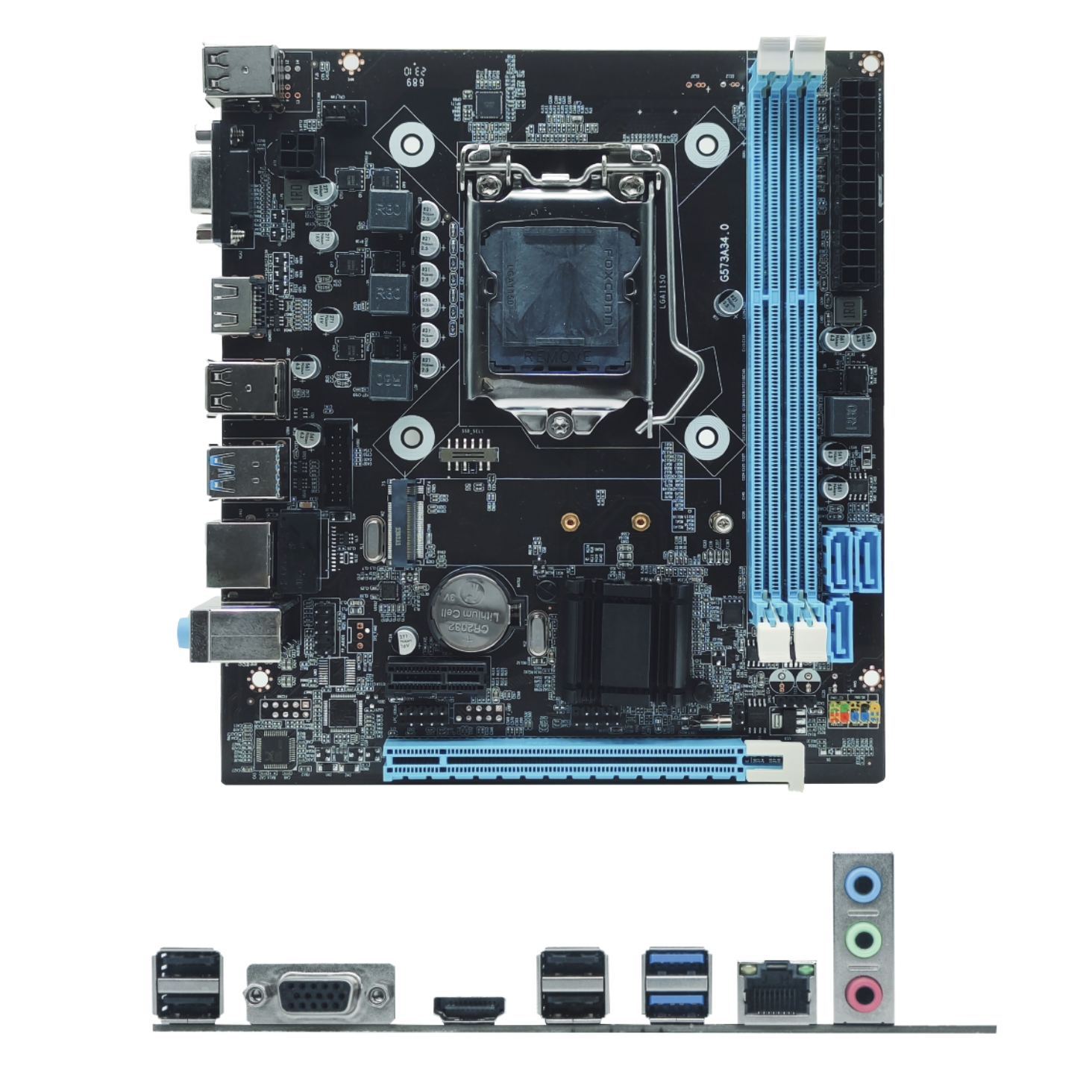

Axle AX-MBAIH81T Sc-1150 H81 DDR3 1600Mhz SATA VGA HDMI M.2 mATX INTEL Anakart

Ürün Açıklaması

Axle AX-MBAIH81T Sc-1150 H81 DDR3 1600Mhz SATA VGA HDMI M.2 mATX INTEL Anakart AXLE AX-MBAIH81T H81 1150p AnakartCPU: Supports LGA1150 Socket I3/I5/I7 seriesChipset: Intel H81 Express ChipsetMemory: 2 x 240-pin DDR3 SDRAM slotsMemory up to 16GB Supports dual channal DDR3 1066/1333/1600 MHzI/O interface4 x USB 2.02 x USB 3.01 x VGA port1 x HDMI port1 x RJ45 port1 x 3-in-1 Audio port(line ln/Line Out/MIC IN)Onboard interface1 x 24-pin ATX power connector1 x 4-pin ATX 12V power connector2 x USB connector, can support 4 x USB 2.01 x F_ AUDIO connector1 x F_ PANEL connector1 x SPEAKER connector1 x FAN connector1x serial SATA/6GB/S connector port2 x serial SATA/3GB/S connector port1 x LPC_ DEBUG connectorExpansion slot1x PCI Express x16 slot1x PCI Express x1 slot1x M.2 slot support Nvme and NGFFDimension: Micro-ATX architecture(17 x 19cm)
