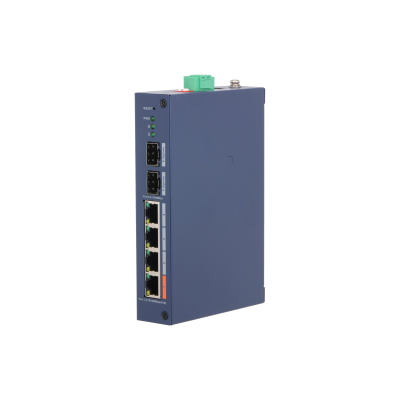

Dahua CHS4206-4ET-60 4 Port 100Mbps PoE 2 Port SFP Clouud Endüstriyel Poe Switch
Ürün Açıklaması
Dahua CHS4206-4ET-60 4 Port 100Mbps PoE 2 Port SFP Clouud Endüstriyel Poe Switch BasicLayerLayer 2Switching Capacity4.8 GbpsPacket Forwarding Rate3.57 MppsDescription of Function SlotsPort 1-4: 4 × RJ-45 10/100 Mbps (PoE)Port 5-6: 2 × SFP 1000 Mbps (uplink)Operating Temperature–30 °C to +65 °C (–22 °F to +149 °F)Operating Humidity10%–90% (RH), non-condensingProtectionIP30;IK06Storage Temperature-40 °C to +85 °C (-40 °F to +185 °F)Storage Humidity5%–95% (RH), non-condensingPower SupplyExternal dual power supply (terminal block and DC): 48–57 VDC, 1.354–1.14 APower ConsumptionIdling: 1.3 WFull load: 65 WStatics ProtectionAir discharge: 8 kVContact discharge: 6 kVLightning ProtectionCommon mode: 4 kVDifferential mode: 2 kVNet Weight0.32 kg (0.71 lb)Gross Weight0.87 kg (1.92 lb)Product Dimensions154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)Packaging Dimensions266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L × W × H)Casing MaterialIronInstallationDIN rail mount; desktop mountCertificationsCEPoEPoEYesPoE PowerPort 2-4≤30 W, port 1≤60 W, total≤60 WPoE ProtocolIEEE 802.3af; IEEE 802.3at; Hi-PoEPoE Power Consumption ManagementPoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoEPoE Pin Assignment1,2,4,5 (V+),3,6,7,8 (V-)Long Distance PoE TransmissionYesHardwareDIP SwitchManaged mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.Extend mode: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.PoE Watchdog: Monitors the flow of data traffic for ports 1–4. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.Reset Button1PerformanceMTBF2,020,305.28 hoursPacket Buffer Size4 MbitJumbo Frame9216 ByteMAC Table Size8KCommunication StandardIEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3zVLAN Number32Fea...
