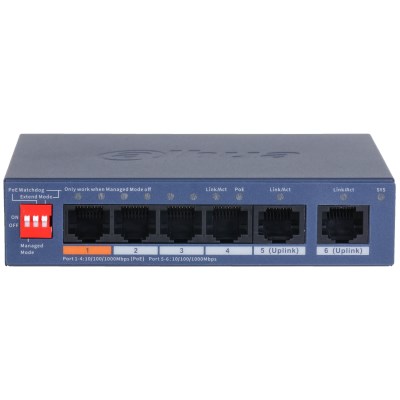

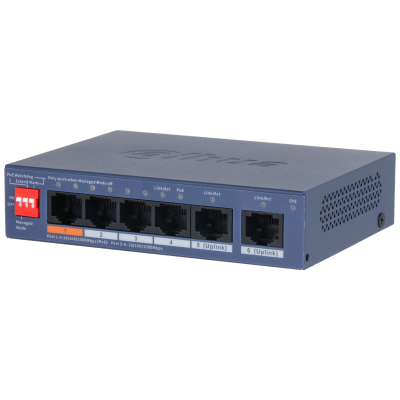

Dahua CHS4206-4GT-60 4 Port Gigabit POE 2 Port Uplink 60W Cloud Yönetilebilir Edüstriyel PoE Switch

Ürün Açıklaması

Dahua CHS4206-4GT-60 4 Port Gigabit POE 2 Port Uplink 60W Cloud Yönetilebilir Edüstriyel PoE Switch HardwareIncluded Power AdapterYesPoEYesEthernet Port4Ethernet Port Speed10/100/1000 MbpsEthernet Port Uplink Speed10/100/1000 MbpsDescription of Function SlotsPort 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)Reset Button1Power SupplyExternal power supply: 53 VDC, 1.226 AOperating Temperature–10 °C to +55 °C (+14 °F to +131 °F)Operating Humidity5%–95% (RH), non-condensingStorage Temperature–40 °C to +70 °C (–40 °F to +158 °F)Storage Humidity5%–95% (RH), non-condensingPower ConsumptionIdling: ≤2.5 W ; Full load: 65 WPerformanceLayerLayer 2Management TypeYesSmart Managed SwitchYesMTBF222.36 yearsSwitching Capacity12 GbpsPacket Forwarding Rate8.93 MppsPacket Buffer Size4 MbitJumbo Frame15K ByteMAC Table Size8KVLAN Number32Communication StandardIEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3abFeaturePoE ProtocolIEEE802.3af; IEEE802.3at; Hi-PoEPoE PowerPort 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 WPoE Power Consumption ManagementYesPoE Pin Assignment1,2,4,5?V+?,3,6,7,8?V-?Long Distance PoE TransmissionYesSpanning Tree ProtocolSTP/RSTPVLAN FunctionPort-based VLANIEEE 802.3x Flow ControlYesDHCP FunctionDHCP ClientEquipment ManagementWeb management; App managementGeneralStatics ProtectionAir discharge: 8 kV; Contact discharge: 6 kVLighting ProtectionCommon mode: 4 kV; Differential mode: 2 kVNet Weight0.29 kg (0.64 lb)Gross Weight0.94 kg (2.07 lb)Product Dimensions130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)Packaging Dimensions
