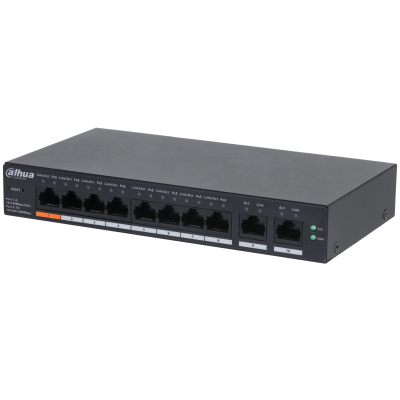

Dahua CS4010-8ET-60 8 Port 100Mbps Poe 2 Port Uplink 60W PoE Switch

Ürün Açıklaması

Dahua CS4010-8ET-60 8 Port 100Mbps Poe 2 Port Uplink 60W PoE Switch BasicLayer Layer 2Switching Capacity 4.8 GbpsPacket Forwarding Rate 3.57 MppsDescription of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)PoE Power Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 WOperating Temperature –10 °C to +55 °C (+14 °F to +131 °F)Operating Humidity 5% –95% (RH), non-condensingPower Consumption Idling: ≤3 W;Full load: 65 WPower Supply External power supply: 53 VDC, 1.226 AStatics Protection Air discharge: 8 kV; Contact discharge: 6 kVLightning Protection Common mode: 4 kV; Differential mode: 2 kVNet Weight 0.28 kg (0.64 lb)Product Dimensions 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)HardwarePoE YesReset Button 1Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)Storage Humidity 5%–95% (RH), non-condensingPerformanceMTBF 232.62 yearsPacket Buffer Size 4 MbitJumbo Frame 9216 ByteMAC Table Size 8KVLAN Number 32Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3abFeaturePoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoEPoE Power Consumption Management YesPoE Pin Assignment 1,2,4,5?V+?,3,6,7,8?V-?Long Distance PoE Transmission YesVLAN Function Port-based VLANIEEE 802.3x Flow Control YesDHCP Function DHCP ClientEquipment Management Web management; App managementGeneralGross Weight 0.80 kg (1.76 lb)Packaging Dimensions 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)Casing Material Sheet metalInstallation Desktop mount; wall mountCertifications CEPacking List Quick Start Guide × 1; Legal and Regulatory Information × 1;Power adapter × 1; Power cord × 1
