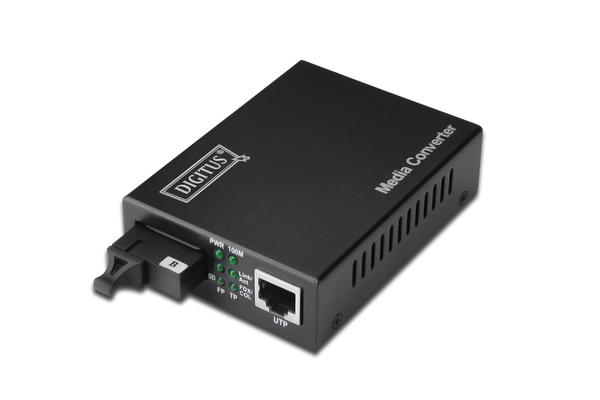

Digitus DN-82023 20 Km 10/100BAse-T to 10/100Base-TX Singlemode SC Media Converter

Ürün Açıklaması

DIGITUS DN-82023 20 KM Fast Ethernet Singlomode SC MEdia ConverterDigitus Fast Ethernet Media Converter, Singlemode, BiDi Tx1550nm / Rx1310nm, SC connector, up to 20km Transforms wire based network media to fiber opticHigh quality and excellent reliability10/100Base-T and IEEE 802.3u compatibleConnectors: 1x RJ45, 1x SC SimplexDistance up to 20kmWavelength: Tx 1550nm / Rx 1310nmSinglemode Single FiberAutomatic cable detection - auto MDI / MDI-X functionAuto-negotiation of full- and half-duplexDiagnostic and monitoring LEDs for the status of power, link and act of the portsLink Fault Pass Through (LFP) function for easier network maintenanceSuitable for 9/125µm Fiber CablesTransmission power: minimum -8 dBm, maximum -3 dBmSensitivity Receiving Power: Minimum -36 dBmSupported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet128kB data bufferOperating temperature: 0 to 55°CDimensions (L x W x H): 95mm x 70mm x 26mmWeight: 200gStandalone Converter with external power supplyInput Supply Voltage: 5V DCMax. Current: 800mAPower Consumption: 2.5WSuitable Converter for Opposite Side: DN-82022Connector 1: RJ45Connector 2: SCMode: SinglemodeDistance (km): 20Broadcasting Mode: BiidirectionalEthernet speed: Fast Ethernet
