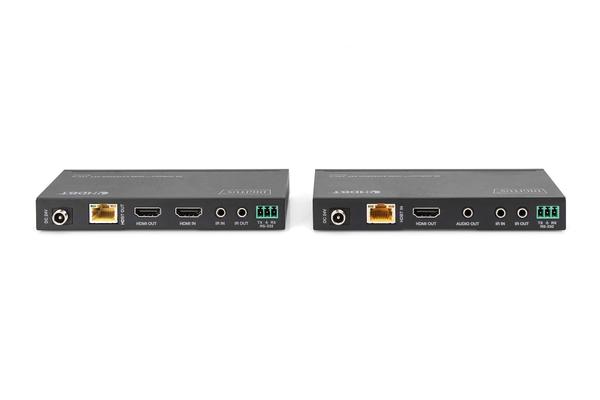

Digitus DS-55508 150 Mh HDMI 4K 60HZ 18Gbps HDBaset Mesafe Uzatıcı

Ürün Açıklaması

Digitus DS-55508 150 Mh HDMI 4K 60HZ 18Gbps HDBaset Mesafe Uzatıcı Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 mSupports 4K2K/60Hz (4:4:4)Maximum transmission distance (UHD 4K2K): 120 mMaximum transmission distance (Full HD 1080p): 150 mVideo bandwidth: 18 GbpsBi-directional IR transmissionCEC pass-throughTransmitter unit connections:1x HDMI input (4K/60Hz) - Connection signal source1x RJ45 (HDBaseT™) output - Connection CAT transmission cable1x HDMI loop-out / output – Connection of local monitor (source device)1x IR input to receive remote control signals1x IR output for control of the source device1x RS232 (3-pin Phoenix) for RS232 command transmission1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter1x Micro USB input - Service/remote maintenance updateReceiver unit connections:1x HDMI output (4K/60Hz) - Connection output device1x RJ45 input (HDBaseT™) - Connection CAT transmission cable1x RS232 (3-pin Phoenix) for RS232 command transmission1x 3.5 mm stereo audio output1x IR input to receive remote control signals1x IR output for control of the output display1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter1x Micro USB input - Service/remote maintenance updateESD protectionSuitable for wall mountingOperating temperature: 0-40°Power consumption: approx. 9.36 WHousing: MetalDimensions (1 unit): L 14 x W 6.5 x H 1.8 cmWeight: Transmitter 160 g, Receiver 155 gColor: BlackKVM: noPoE (Power over Ethernet): no1x Transmitter unit1x Receiver unit1x IR transmission cable (1.5 m)1x IR receiver cable (1.5 m)1x Power adapter (DC 24V/1A, 1.45 m)2x 3-pin Phoenix connector4x Mounting plate1x User manual
