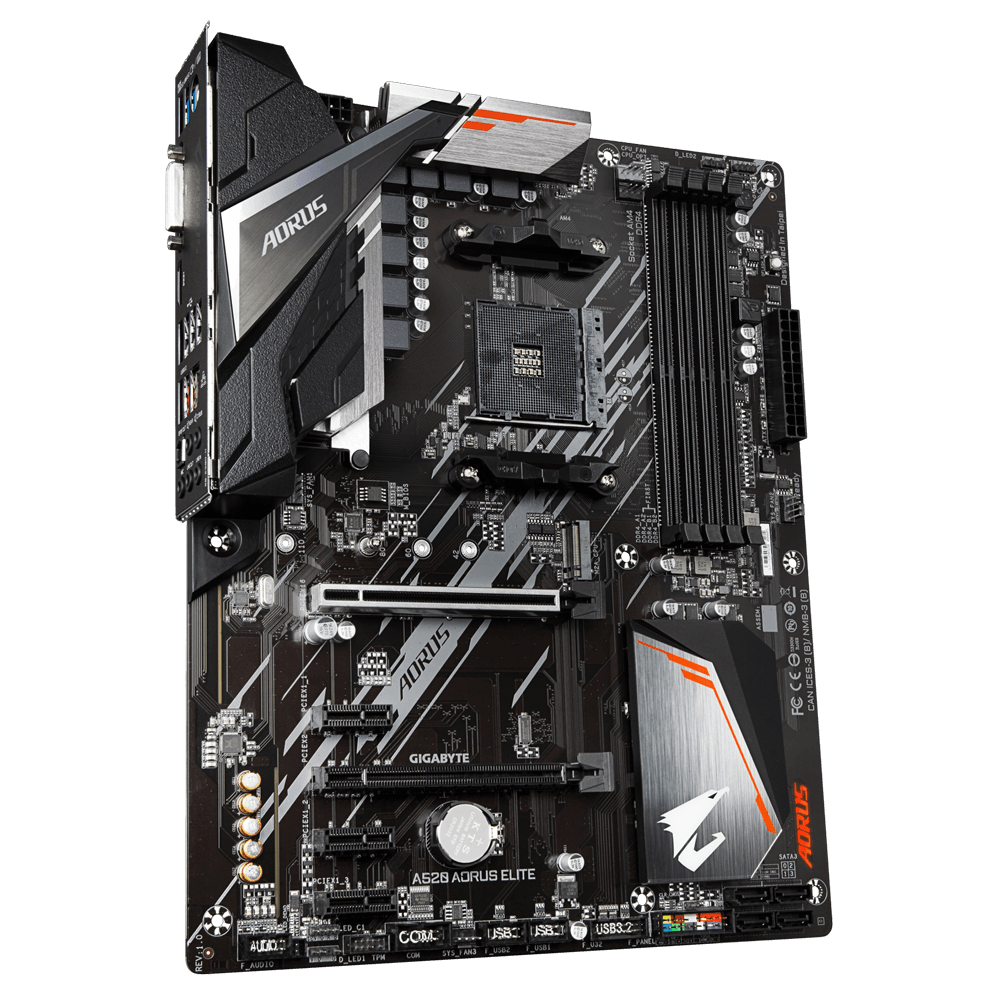

Gigabyte A520 AORUS ELITE Sc-Am4 A520 DDR4 4700Mhz M2 ATX AMD Anakart

Ürün Açıklaması

Gigabyte A520 AORUS ELITE Sc-Am4 A520 DDR4 4700Mhz M2 ATX AMD Anakart CPUAMD Socket AM4, support for : AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors(Please refer "CPU Support List" for more information.)ChipsetAMD A520Memory4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*ECC memory (ECC mode) support varies by CPUSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)Onboard GraphicsIntegrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GBAudioRealtek® ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutLANRealtek® GbE LAN chip (1000 Mbit/100 Mbit)Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)* The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot.Storage InterfaceCPU:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and...
