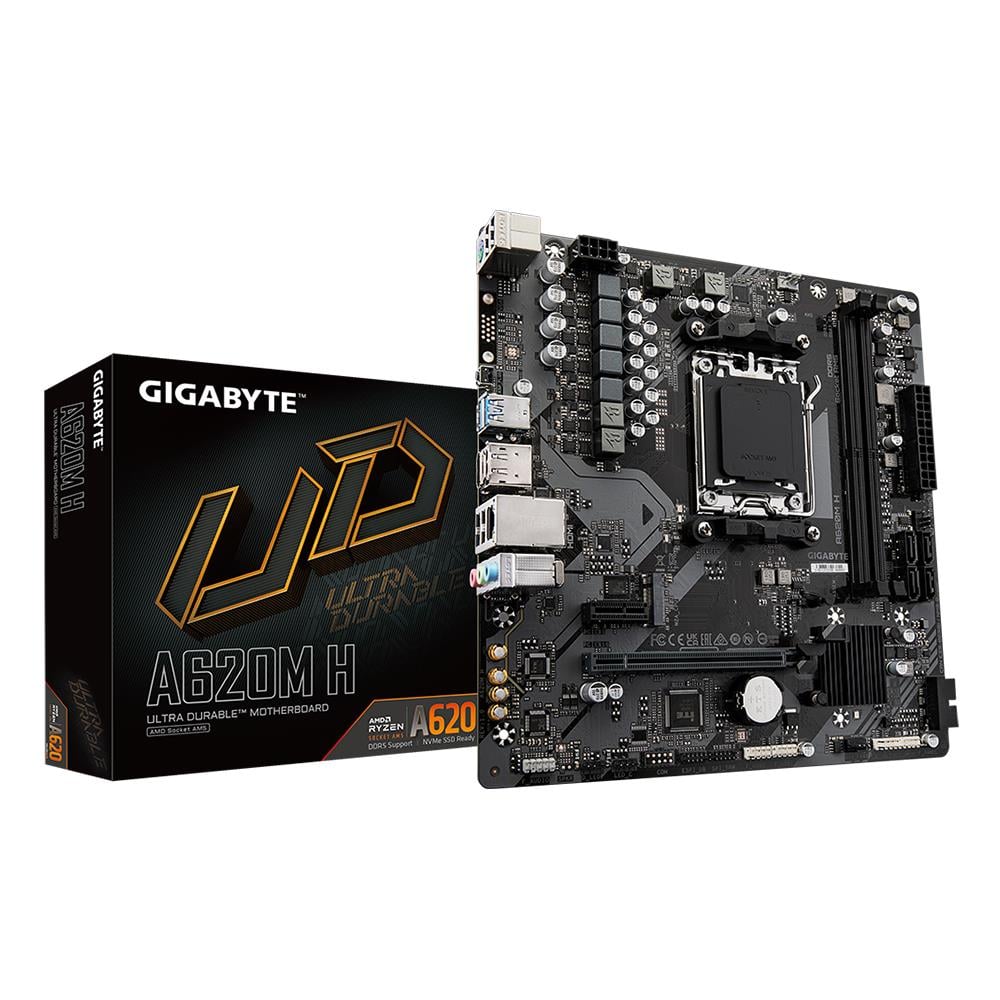

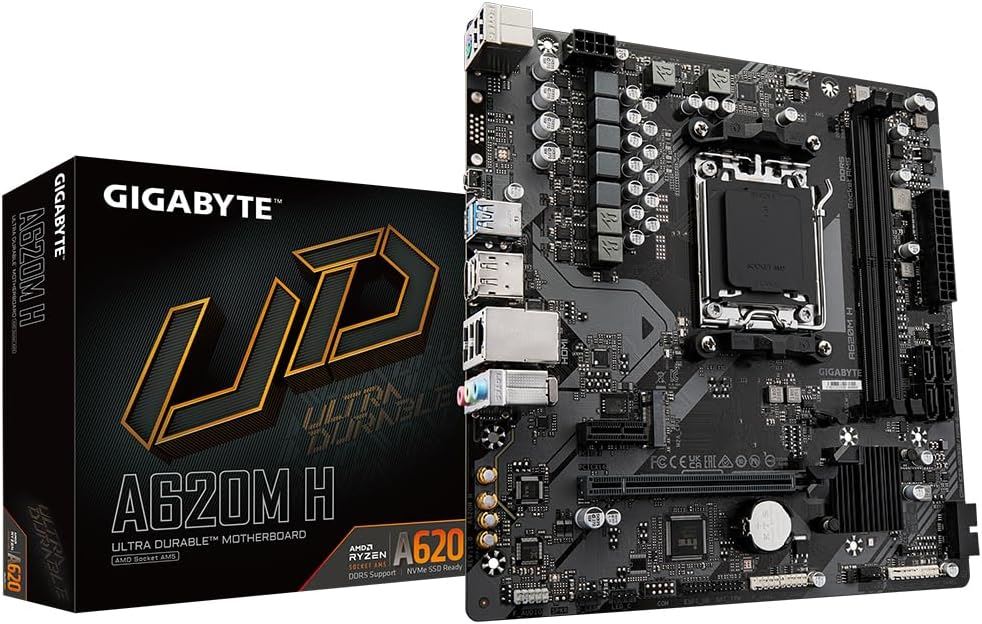

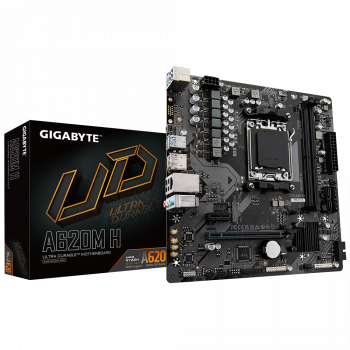

GIGABYTE A620M-H 6400 MHz OC DDR5 AM5 M.2 HDMI DisplayPort MicroATX Anakart

Ürün Açıklaması

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors Goto GIGABYTE's website for the latest CPU support list.Please refer "CPU Support List" for more information.• Chipset1. AMD A620• Memory1. Support for DDR5 6400OC6200OC6000OC5600OC520048004400 MTs memorymodules2. 2 x DDR5 DIMM sockets supporting up to 96 GB 48 GB single DIMMcapacity of system memory3. Dual channel memory architecture4. Support for non-ECC Un-buffered DIMM 1Rx82Rx81Rx16 memory modules5. Support for AMD EXtended Profiles for Overclocking AMD EXPO™ andExtreme Memory Profile XMP memory modulesThe CPU and memory configuration may affect the supported memory types,data rate speed, and number of DRAM modules, please refer to "MemorySupport List" for more information.• Onboard GraphicsIntegrated Graphics Processor:1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144Hz* Support for DisplayPort 1.4 version.2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.Graphics specifications may vary depending on CPU support.Support for up to 3 displays at the same time• Audio1. Realtek® Audio CODEC2. High Definition Audio3. 245.17.1-channel* You can change the functionality of an audio jack using the audiosoftware. To configure 7.1-channel audio, access the audio software foraudio settings.• LAN1. Realtek® GbE LAN chip 1 Gbps100 Mbps10 Mbps• Expansion SlotsCPU:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1• Storage InterfaceCPU:1. 1 x M.2 connector Socket 3, M key, type 2580 PCIe 4.0 x4x2 SSDsupportChipset:2. 4 x SATA 6Gbs connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices• USBCPU:1. 2 x USB 3.2 Gen 1 ports on the back panel2. 1 x USB 2.01.1 port on the back panelChipset:3. 2 x USB 3.2 Gen 1 ports avai...
