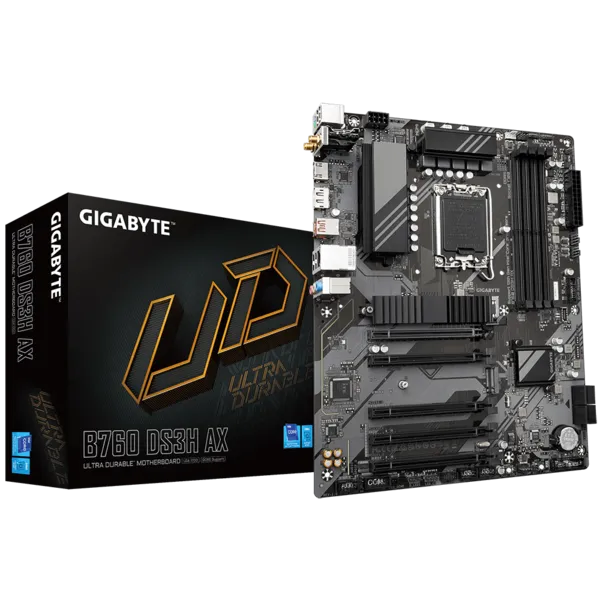

Gigabyte B760 DS3H AX Sc-1700 B760 DDR5 7600Mhz 2xM2 WİFİ 6E ATX INTEL Anakart

Ürün Açıklaması

Gigabyte B760 DS3H AX Sc-1700 B760 DDR5 7600Mhz 2xM2 WİFİ 6E ATX INTEL Anakart İşlemciLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 önbelleği, kullanılan işlemciye bağlı olarak değişir* Please refer to "CPU Support List" for more information.YongasetiIntel® B760 Express ChipsetBellekSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryÇift kanal bellek mimarisiECC olmayan DIMM 1Rx8/2Rx8 hafıza modüllerini desteklerECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini desteklerExtreme Memory Profile (XMP) bellek modülleri desteği(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)Dahili GrafikEntegre Grafik İşlemcisi - Intel® HD Grafik desteğiMaksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, maksimum 4096x2304@60 Hz çözünürlük desteği* Support for DisplayPort 1.2 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)Ses DesteğiRealtek® audio codecHD Ses Desteği2/4/5.1/7.1-kanal* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.S/PDIF Çıkış DesteğiLANRealtek® GbE LAN chip (1 Gbps/100 Mbps)Wireless Bağlantı ModülüIntel® Wi-Fi 6E AX210 (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX211 (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporti...
