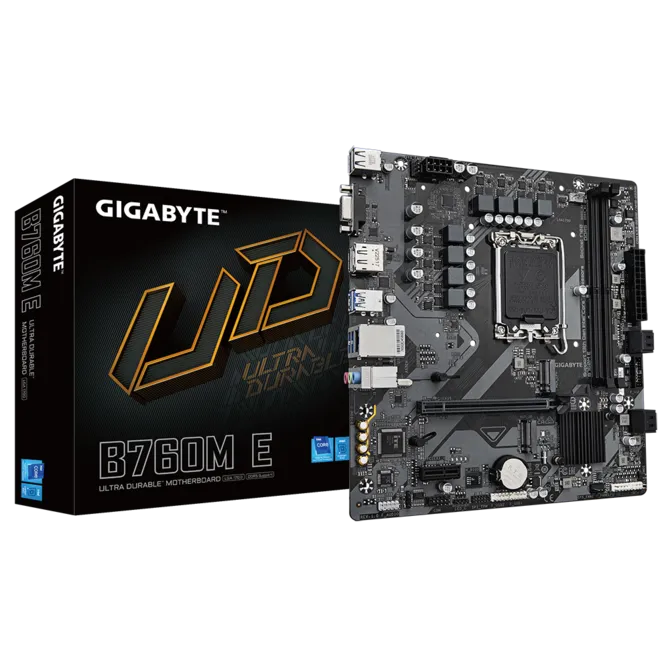

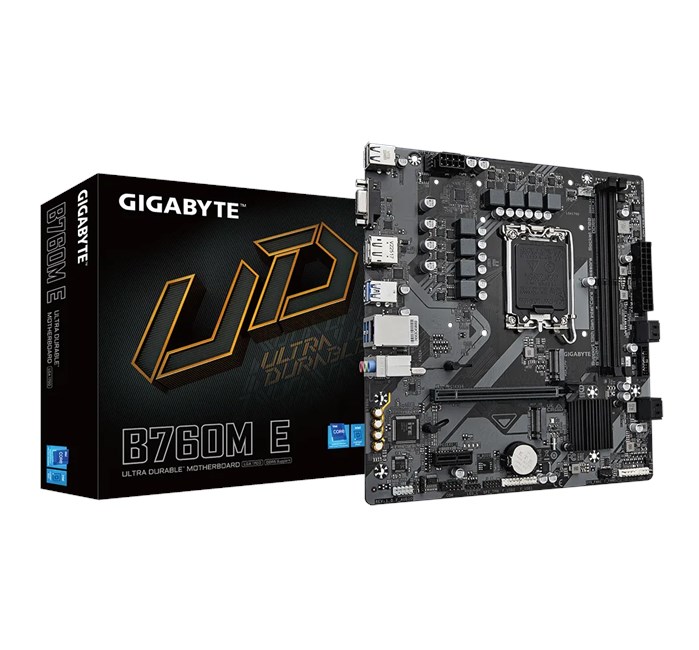

Gigabyte B760M E Sc-1700 DDR5 72000MHz M2 mATX INTEL Anakart
Ürün Açıklaması
Gigabyte B760M E Sc-1700 DDR5 72000MHz M2 mATX INTEL Anakart CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)ChipsetIntel ® B760 Express ChipsetMemorySupport for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same timeAudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:- 1 x PCI Express x1 slo...
