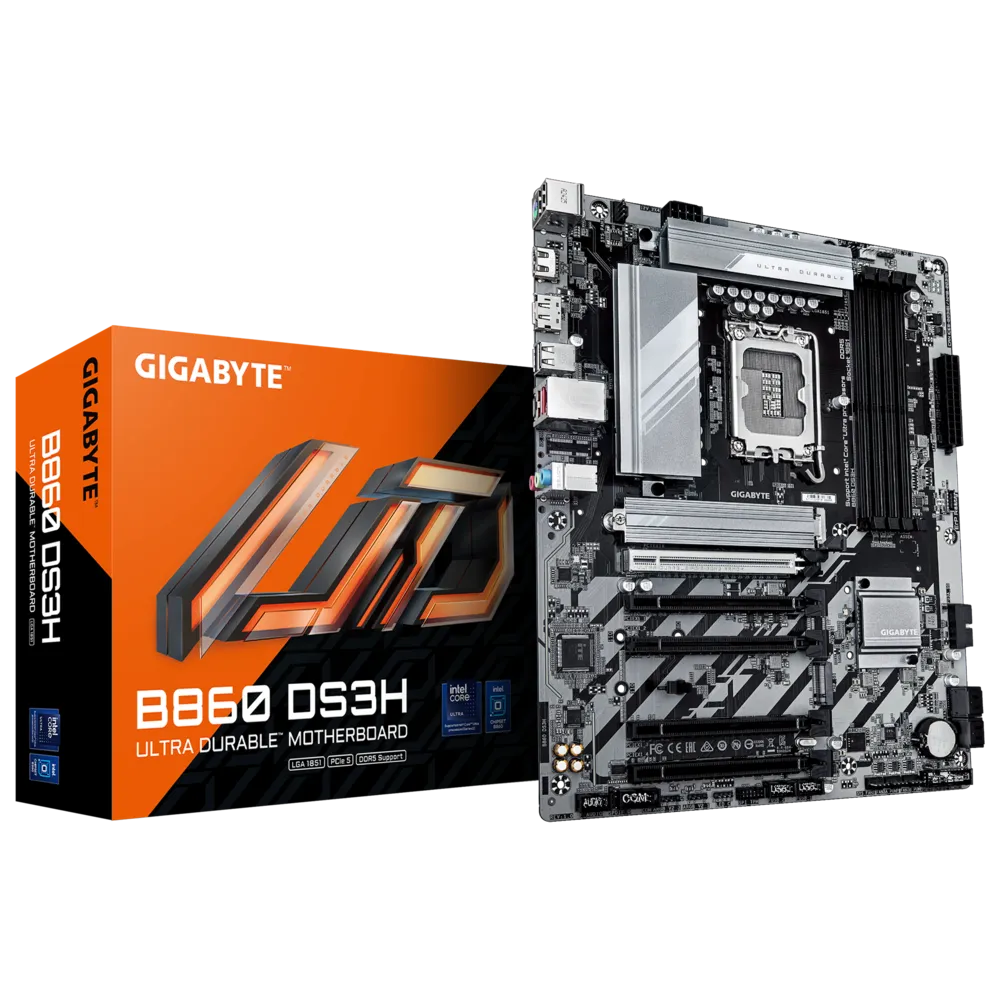

Gigabyte B860 DS3H Sc-1851 B860 DDR5 9066Mhz 2xM2 ATX INTEL Anakart

Ürün Açıklaması

Gigabyte B860 DS3H Sc-1851 B860 DDR5 9066Mhz 2xM2 ATX INTEL Anakart CPULGA1851 socket: Support for Intel® Core™ Ultra Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPUChipsetIntel® B860 Express ChipsetMemorySupport for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version.(Graphics specifications may vary depending on CPU support.)AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PC...
