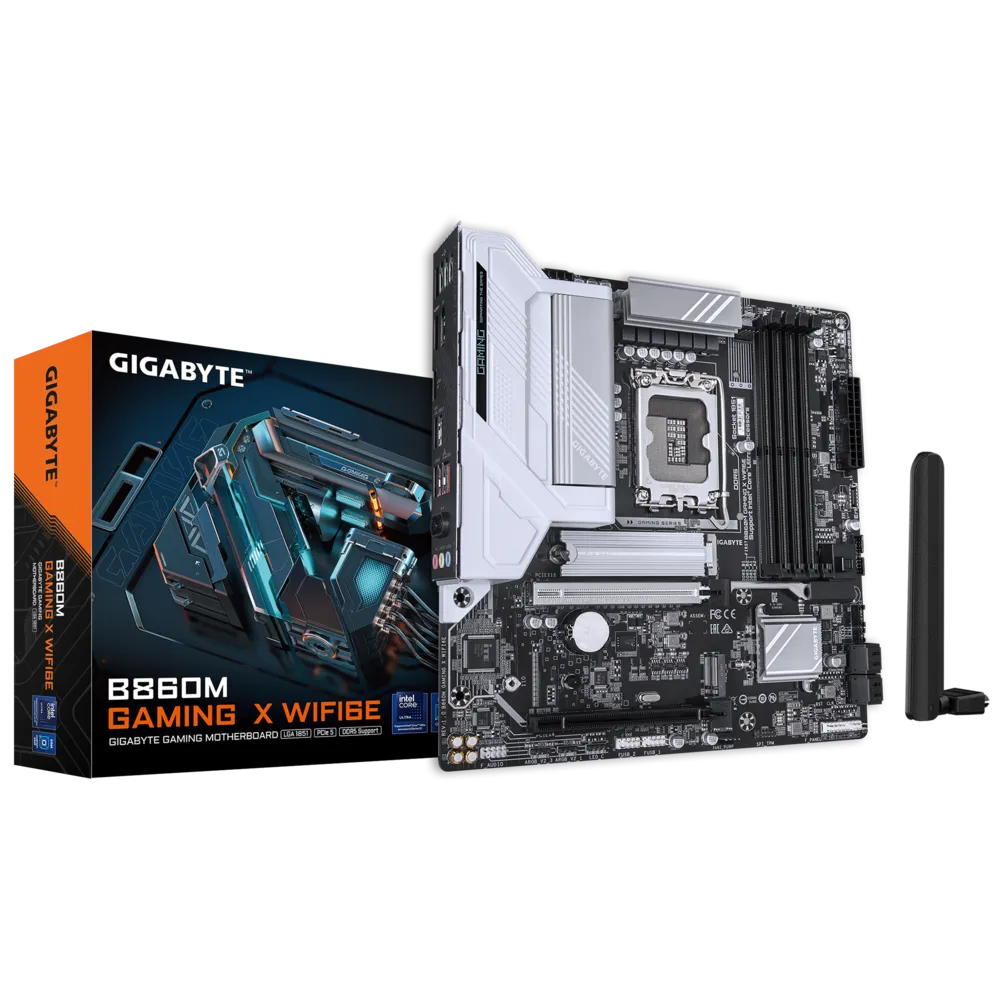

Gigabyte B860M GAMING X WIFI6E Sc-1851 DDR5 9200Mhz 2xM2 Wifi 6E 2.5Gbit INTEL Anakart

Ürün Açıklaması

Gigabyte B860M GAMING X WIFI6E Sc-1851 DDR5 9200Mhz 2xM2 Wifi 6E 2.5Gbit INTEL Anakart CPULGA1851 socket: Support for Intel® Core™ Ultra Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPUChipsetIntel® B860 Express ChipsetMemorySupport for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version.- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same timeAudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication moduleIntel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrie...
