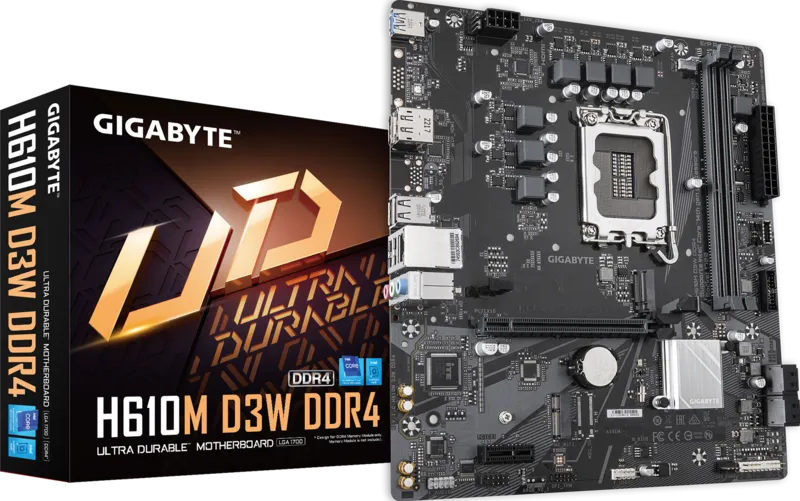

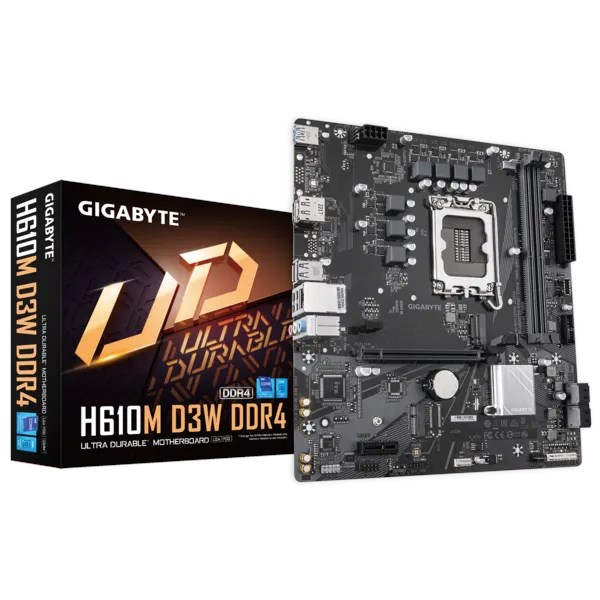

Gigabyte H610M D3W DDR4 Sc-1700 DDR4 3200Mhz M2 VGA HDMI mATX INTEL Anakart
Ürün Açıklaması
Gigabyte H610M D3W DDR4 Sc-1700 DDR4 3200Mhz M2 VGA HDMI mATX INTEL Anakart CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPUChipsetIntel® H610 Express ChipsetMemorySupport for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure7.1-channel audio, access the audio software for audio settings.LANRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1- 1 x M.2 Socket 1 connector, for the CNVi wireless communication module (M2_WIFI)Storage InterfaceChipset:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)- 4 x SATA 6Gb/s connectorsUSBChipset:1 x USB Type-C® port with USB...
