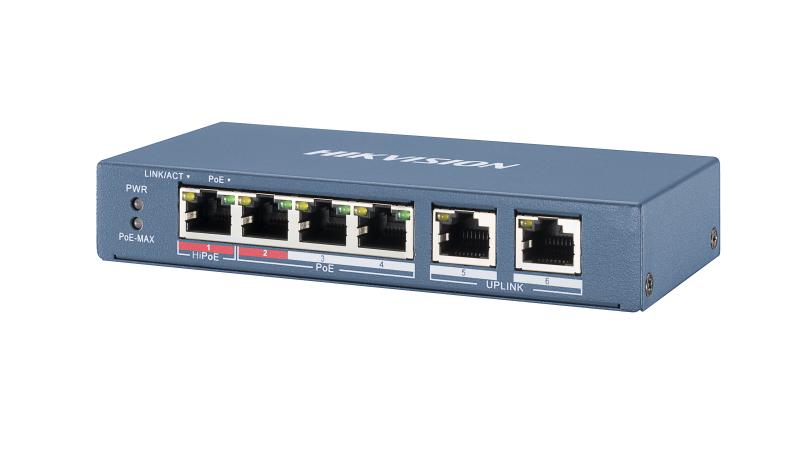

Hikvision DS-3E0106HP-E 4 Port 10/100Mbps PoE 2 Port Uplink 65W PoE Switch

Ürün Açıklaması

Hikvision DS-3E0106HP-E 4 Port 10/100Mbps PoE 2 Port Uplink 65W PoE Switch GeneralShellMetal material, fan-free designNet Weight0.24 kg (0.53 lb)Gross Weight0.77 kg (1.70 lb)Dimensions (W × H × D)145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'')Operating Temperature0 °C to 40 °C (32 °F to 104 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Relative Humidity5% to 95% (no condensation)Power Supply48 VDC, 1.35 AMax. Power Consumption65 WPower Consumption in Idle5 WInstallation ModeDesk-Mounted,Wall-MountedSurge Protection6 KVNetwork ParametersPorts4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 portMAC Address Table2 KSwitching Capacity1.20 GbpsPacket Forwarding Rate0.89 MppsInternal Cache768 KbitsPoE Power SupplyPoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3btPoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)PoE PortHi-PoE: Port 1PoE: Ports 2 to 4Max. Port PowerPort 1: 60 WPorts 2 to 4: 30 WPoE Power Budget60 WDialing FunctionLong RangePorts 1 to 4: up to 300 mLong range performance may vary depend on camera model or cable condition.Software FunctionVIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.ApprovalEMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)ChemistryCE-RoHS (2011/65/EU)
