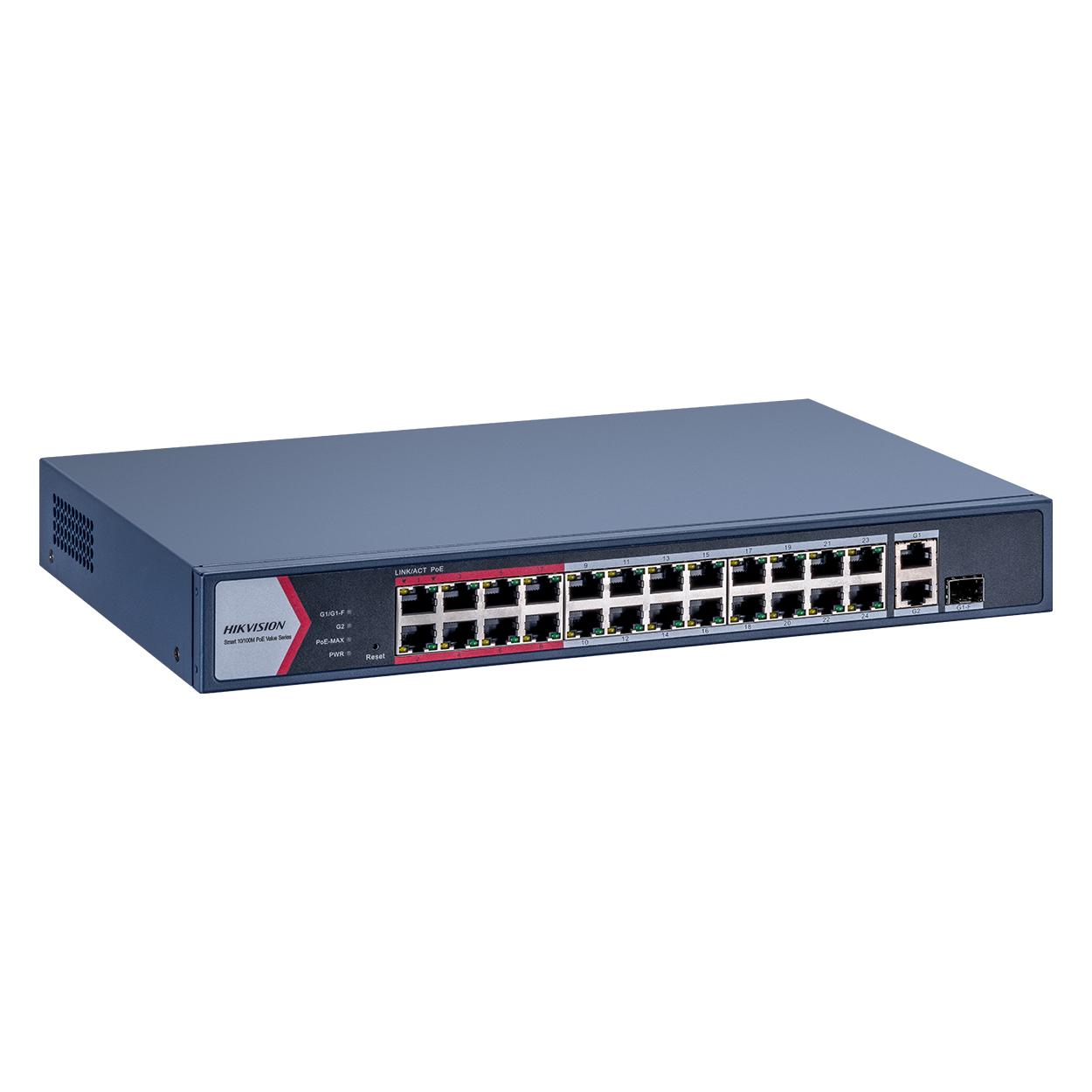

Hikvision DS-3E1326P-EI 24 Port 10/100Mbps 2 Port Uplink 2 Port SFP 370W Yönetilebilir PoE Switch

Ürün Açıklaması

Hikvision DS-3E1326P-EI 24 Port 10/100Mbps 2 Port Uplink 2 Port SFP 370W Yönetilebilir PoE SwitchGeneralShellMetal materialNet Weight2.83 kg (6.24 lb)Gross Weight3.800 kg (8.38 lb)Dimensions (W × H × D)440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')Operating Temperature0 °C to 45 °C (0 °F to 113 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Relative Humidity5% to 95% (no condensation)Power Supply100-240 VAC, 50/60 Hz, Max. 6.5 AInstallation ModeRack (equipped with mounting ears)Max. Power Consumption400 WPower Consumption In Idle30 WSurge Protection6 KVNetwork ParametersPorts24 × 10/100 Mbps PoE port,2 × Gigabit comboMAC Address Table16 KSwitching Capacity14.8 GbpsPacket Forwarding Rate11.01 MppsInternal Cache4 MbitsPoE Power SupplyPoE StandardIEEE 802.3af,IEEE 802.3atPoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)PoE PortPoE: Ports 1 to 24Max. Port Power30 WPoE Power Budget370 WSoftware FunctionLong RangePorts 1 to 24: up to 300 m.Long range performance may vary depend on camera model or cable condition.VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 1 aggregation group(s).HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.System MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.ApprovalEMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000...
