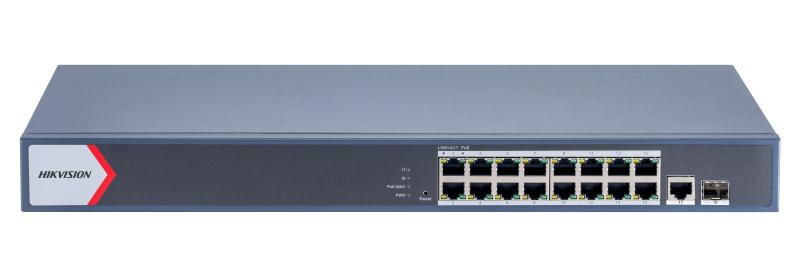

Hikvision DS-3E1518P-EI/M 16 Port Gigabit 1 Port Uplink 1 Port SFP 130W PoE Switch

Ürün Açıklaması

Hikvision DS-3E1518P-EI/M 16 Port Gigabit 1 Port Uplink 1 Port SFP 130W PoE Switch ShellMetal materialNet Weight2.7 kg (5.9 lb)Gross Weight2.9 kg (6.4 lb)Dimensions (W × H × D)440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')Operating Temperature0 °C to 45 °C (0 °F to 113 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Relative Humidity5% to 95% (no condensation)Power Supply100~240 VAC, 50/60 Hz, Max. 2.5 AInstallation ModeRack (equipped with mounting ears)Max. Power Consumption150 WPower Consumption in Idle20 WSurge Protection6 KVNetwork ParametersPorts16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical portMAC Address Table8 KSwitching Capacity56 GbpsPacket Forwarding Rate41.66 MppsInternal Cache4.1 MbitsPoE Power SupplyPoE StandardIEEE 802.3af,IEEE 802.3atPoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)PoE PortPoE: Ports 1 to 16Max. Port Power30 WPoE Power Budget130 WSoftware FunctionLong RangePorts 1 to 16: up to 300 m.Long range performance may vary depend on camera model or cable condition.Port IsolationPorts 1 to 16: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 8 aggregation groups.Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.VLANVLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.HPPSupport o...
