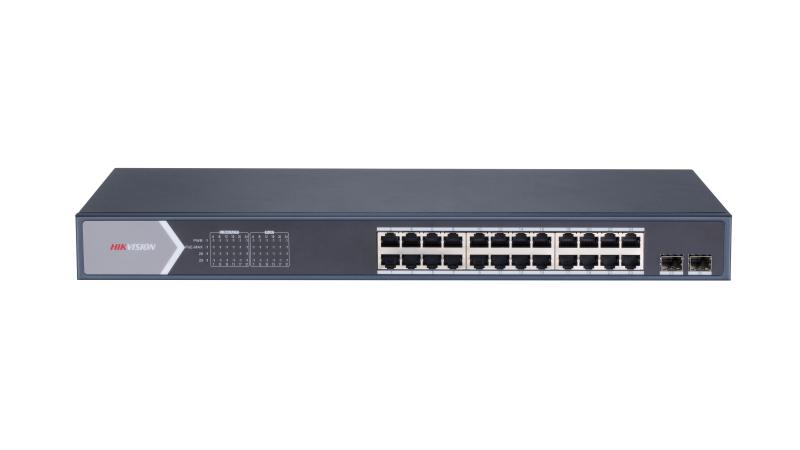

Hikvision DS-3E1526P-SI 24 Port Gigabit 2 Port SFP 370W Yönetilebilir PoE Switch

Ürün Açıklaması

Hikvision DS-3E1526P-SI 24 Port Gigabit 2 Port SFP 370W Yönetilebilir PoE Switch GeneralShellMetal materialNet Weight2.975 kg (6.56 lb)Gross Weight3.535 kg (7.79 lb)Dimensions (W × H × D)440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')Operating Temperature0 °C to 45 °C (0 °F to 113 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Relative Humidity5% to 95% (no condensation)Power Supply100 to 240 VAC, 50/60 Hz, Max. 6.3 AInstallation ModeRack (equipped with mounting ears)Max. Power Consumption400 WPower Consumption in Idle30 WSurge Protection6 KVNetwork ParametersPorts24 × Gigabit PoE port,2 × Gigabit fiber optical portMAC Address Table8 KSwitching Capacity56 GbpsPacket Forwarding Rate41.66 MppsInternal Cache4.1 MbitsPoE Power SupplyPoE StandardIEEE 802.3af,IEEE 802.3atPoE Power PinEnd-span: 1/2(+), 3/6(-);PoE PortPoE: Ports 1 to 24Max. Port Power30 WPoE Power Budget370 WSoftware FunctionLong RangePorts 1 to 24: up to 300 m.Long range performance may vary depend on camera model or cable condition.Port IsolationPorts 1 to 24: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.PoE WatchdogPorts 1 to 24: auto detect and restart the cameras that do not respond.Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 8 aggregation groups.QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.Support port-based priority configuration.Support SP, WRR priority schedule mode.Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.VLANVLAN is used for network scale pla...
