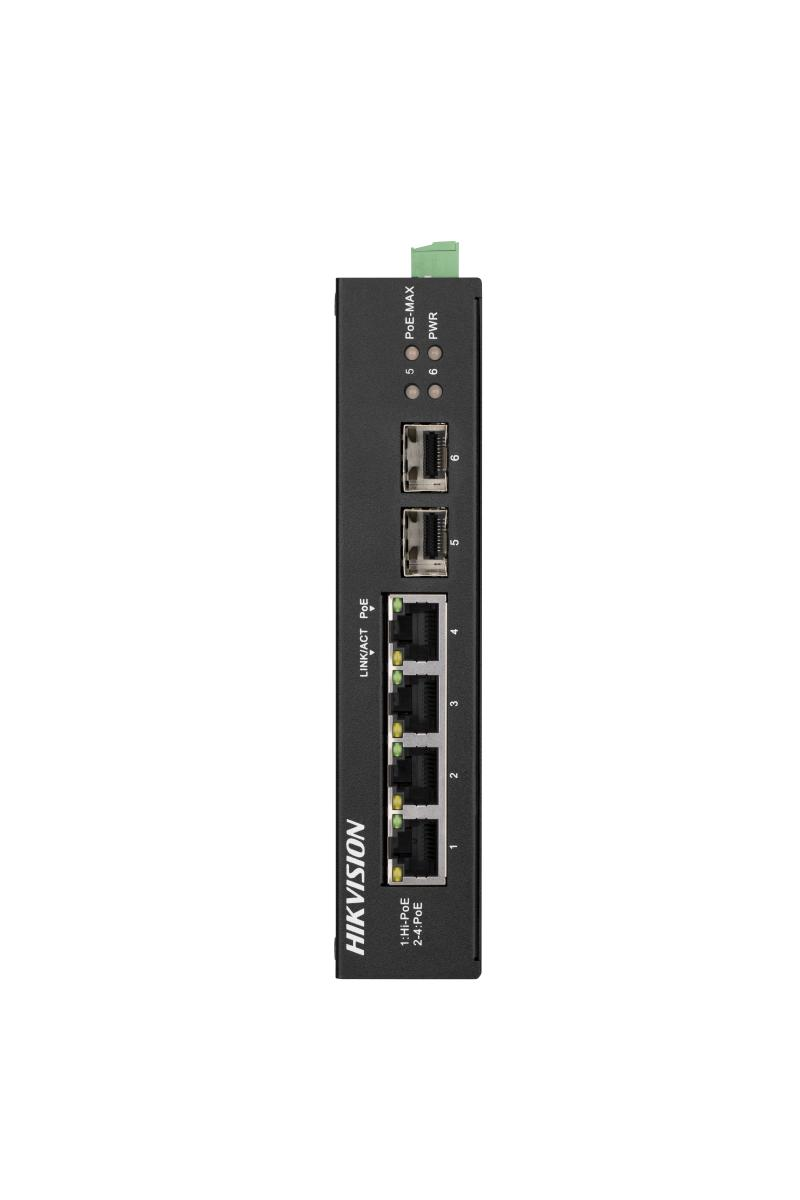

Hikvision DS-3T0506HP-E/HS 4 Port Gigabit Poe 2 Port SFP 60W Endüstriyel PoE Switch

Ürün Açıklaması

Hikvision DS-3T0506HP-E/HS 4 Port Gigabit Poe 2 Port SFP 60W Endüstriyel PoE SwitchGeneralShellMetal material, fan-free designNet Weight0.38 kg (0.84 lb)Gross Weight0.94 kg (2.07 lb)Dimensions (W × H × D)158.0 mm × 101.2 mm × 31.6 mm (6.22'' × 3.98'' × 1.24'')Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Relative Humidity5% to 95% (no condensation)Power Supply48VDC, 1.35AMax. Power Consumption65 WPower Consumption In Idle5 WInstallation ModeDesk-Mounted,RailSurge Protection6 KVNetwork ParametersLimanlar4 × Gigabit PoE port,2 × Gigabit fiber optical portMAC Address Table2 KSwitching Capacity12 GbpsPacket Forwarding Rate8.928 MppsInternal Cache1 MbitsPoE Power SupplyPoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3btPoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)PoE PortHi-PoE: Port 1PoE: Ports 2 to 4Max. Port PowerPort 1: 60 WPorts 2 to 4: 30 WPoE Power Budget65 WDialing FunctionLong RangePorts 3 to 4: up to 300 mLong range performance may vary depend on camera model or cable condition.Port IsolationPorts 1 to 4: port isolation mode to improve network security.PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.ApprovalEMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)ChemistryCE-RoHS (2011/65/EU)
