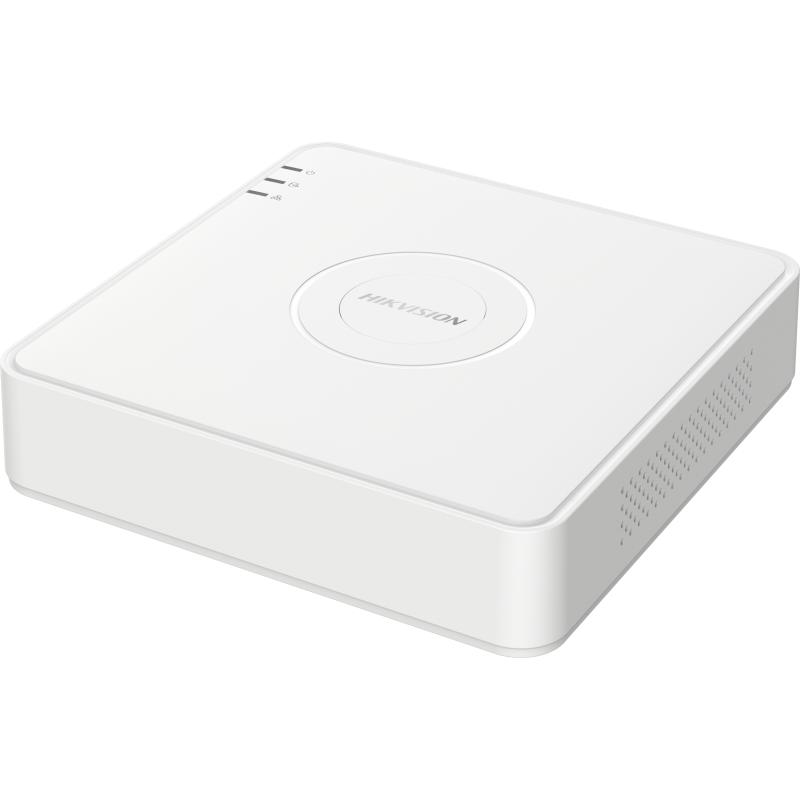

Hikvision DS-7104HGHI-M1 4 Kanal 2 Mp 1080p H265 HDTV AHD CVI CVBS Kayıt Cihazı

Ürün Açıklaması

Hikvision DS-7104HGHI-M1 4 Kanal 2 Mp 1080p H265 HDTV AHD CVI CVBS Kayıt Cihazı Motion Detection 2.0Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;Video and AudioIP Video Input1-ch (up to 5-ch)Up to 1080p resolutionSupport H.265+/H.265/H.264+/H.264 IP camerasAnalog Video Input4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionHDTVI Input1080p25, 1080p30, 720p25, 720p30AHD Input1080p25, 1080p30, 720p25, 720p30HDCVI Input1080p25, 1080p30, 720p25, 720p30CVBS InputSupportHDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output ModeHDMI/VGA simultaneous outputAudio Input1-ch RCA (2.0 Vp-p, 1 KΩ)4-ch via coaxial cableAudio Output1-ch, RCA (Linear, 1 KΩ)Two-Way AudioReuse the first audio inputSynchronous playback4-chRecordingVideo CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIFFrame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)Video Bitrate32 Kbps to 4 MbpsStream TypeVideo, Video & AudioAudio CompressionG.711uAudio Bitrate64 KbpsNetworkTotal Bandwidth64 MbpsNetwork ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPSRemote Connection32Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interfaceAuxiliary InterfaceSATA1 SATA interfaceCapacityUp to 4 TB capacity for each diskUSB InterfaceRear panel: 2 × USB 2.0Alarm In...
