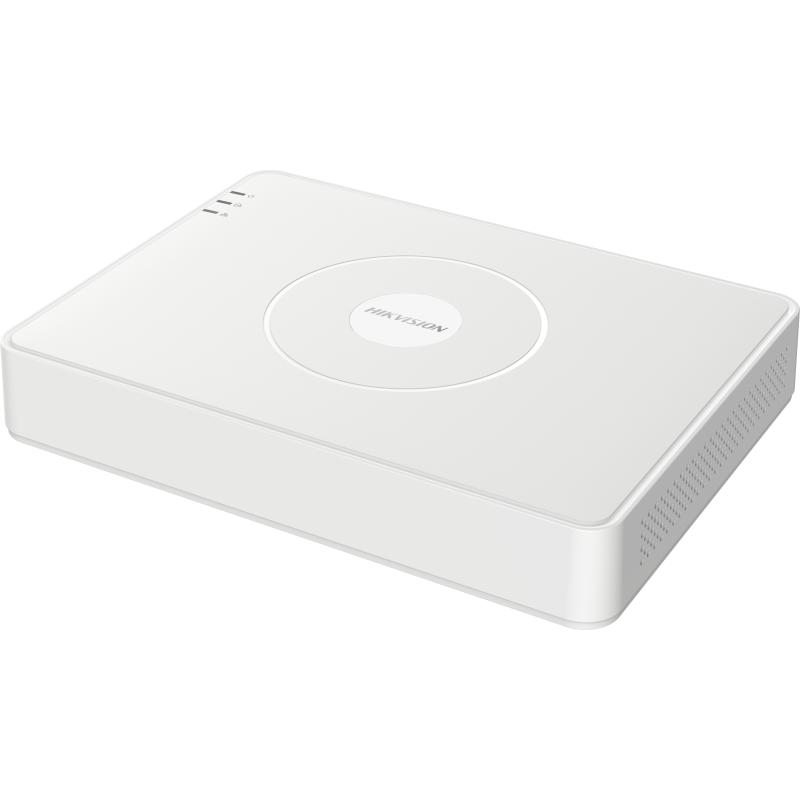

Hikvision DS-7116HQHI-K1 16 Kanal 1080p h265 1 HDD VGA HDMI Hibrit DVR Kayıt Cihazı

Ürün Açıklaması

Hikvision DS-7116HQHI-K1 16 Kanal 1080p h265 1 HDD VGA HDMI Hibrit DVR Kayıt Cihazı Video and AudioIP Video Input2-ch (up to 18-ch) Enhanced IP mode on:8-ch (up to 24-ch), each up to 4 MbpsUp to 6 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP camerasAnalog Video Input16-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionIncoming Bandwidth96 MbpsHDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fpsAHD Input5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fpsHDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fpsCVBS InputSupportHDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzAudio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)16-ch via coaxial cableAudio Output1-ch, RCA (Linear, 1 KΩ)Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)Synchronous Playback16-chRecordingVideo CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding ResolutionWhen 1080p Lite mode is not enabled:3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled:3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIFFrame RateMain stream:When 1080p Lite mode not enabled:For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:3K lite/5 MP lite@12fps;4 MP lite@15fps;1080...
