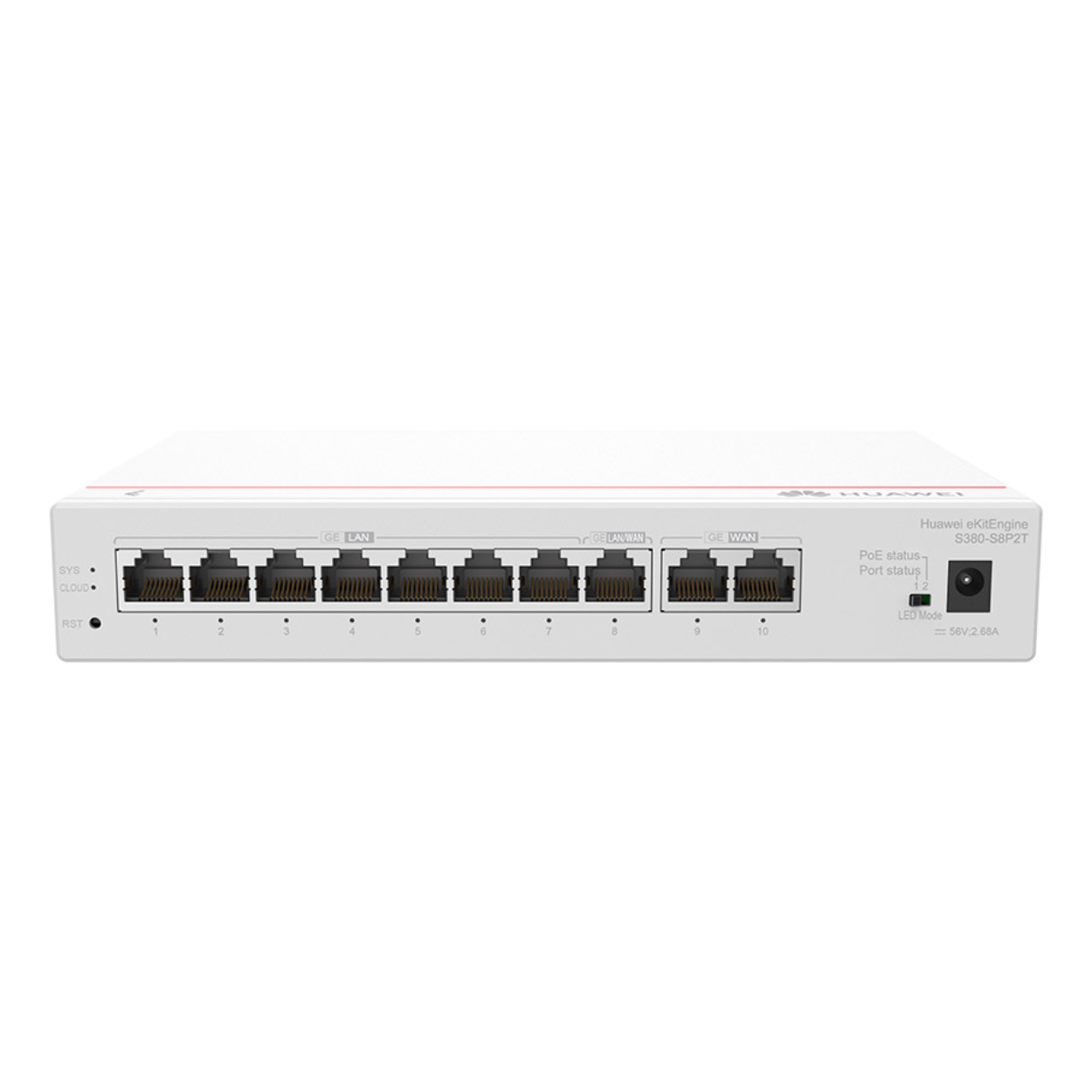

Huawei S380-S8P2T 8 Port Gigabit POE LAN 2 Port Gigabirt WAN 124W eKitEngine Gateway Router

Ürün Açıklaması

Huawei S380-S8P2T 8 Port Gigabit POE LAN 2 Port Gigabirt WAN 124W eKitEngine Gateway Router ItemSpecificationDimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)Dimensions with packaging (H x W x D) [mm(in.)]150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)Chassis height [U]0.8 UWeight without packaging [kg(lb)]1.5 kg (3.31 lb)Weight with packaging [kg(lb)]1.8 kg (3.97 lb)Typical power consumption [W]12.4 WTypical heat dissipation [BTU/hour]42.3 BTU/hourMaximum power consumption [W]145.8 W (PoE: 124 W)Maximum heat dissipation [BTU/hour]497.5 BTU/hourStatic power consumption [W]7.53 WMTBF [year]65.36 yearMTTR [hour]2 hourAvailability>0.99999Noise at normal temperature (acoustic power) [dB(A)]Noise-free (no fans), < 30Noise at normal temperature (acoustic pressure) [dB(A)]Noise-free (no fans), < 20Number of card slots0Number of power slots0Number of fans modules0Redundant power supplyNot supportedLong-term operating temperature [°C(°F)]0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)Restriction on the operating temperature variation rate [°C(°F)]When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).Storage temperature [°C(°F)]–40°C to +70°C (–40°F to +158°F)Long-term operating relative humidity [RH]5% RH to 95% RH (non-condensing)Long-term operating altitude [m(ft.)]0–5000 m (0–16404 ft.)Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)Power supply modePower adapterRated input voltage [V]Power adapter input: 100–240 V AC; 50/60 HzPower adapter output: 56 V DCInput voltage range [V]Power adapter input: 90–290 V AC; 47–63 HzMaximu...
