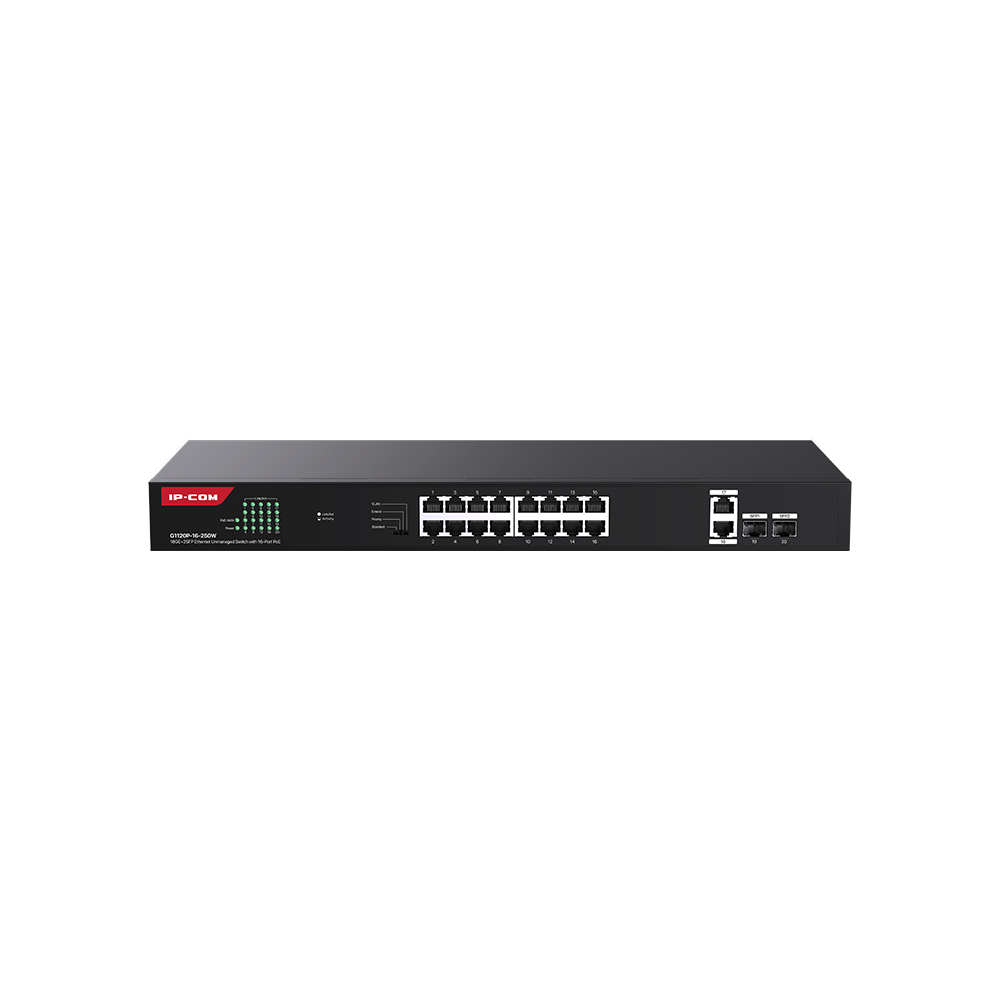

Ip-Com G1120P-16-250W 16 Port Gigabit 2 Port Uplink 2 Port SFP 250W PoE Switch

Ürün Açıklaması

Ip-Com G1120P-16-250W 16 Port Gigabit 2 Port Uplink 2 Port SFP 250W PoE Switch HardwareDimensions440mm*178mm*44mmMountingRack mounting : supportDesktop mounting: supportWall mounting: supportEnclosure materialMetalInterfaces(18)1GE RJ45 ports(2)1GE SFP portsPoE interface(16) PoE (Pins 1, 2+; 3, 6-)LED IndicatorPowerLink/ActPoE MAXFan1Switching capacity40GbpsForwarding rate29.8MppsPower method100-240V AC?50 / 60HzPower consumption250WTotal available PoE230WMax. PoE wattage per port by PSE30WLightning protectionPort: 6 KVPower?6 KVButtonFuntion mode ButtonOperating temperature0°C - 45?Storage temperature-40°C - 70°COperating humidity10% - 90%,non-condensingStorage humidity5% - 90%,non-condensingCertificationsFCC, CE, RoHSFuntionsOne-key to change network mode:1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
