Omada

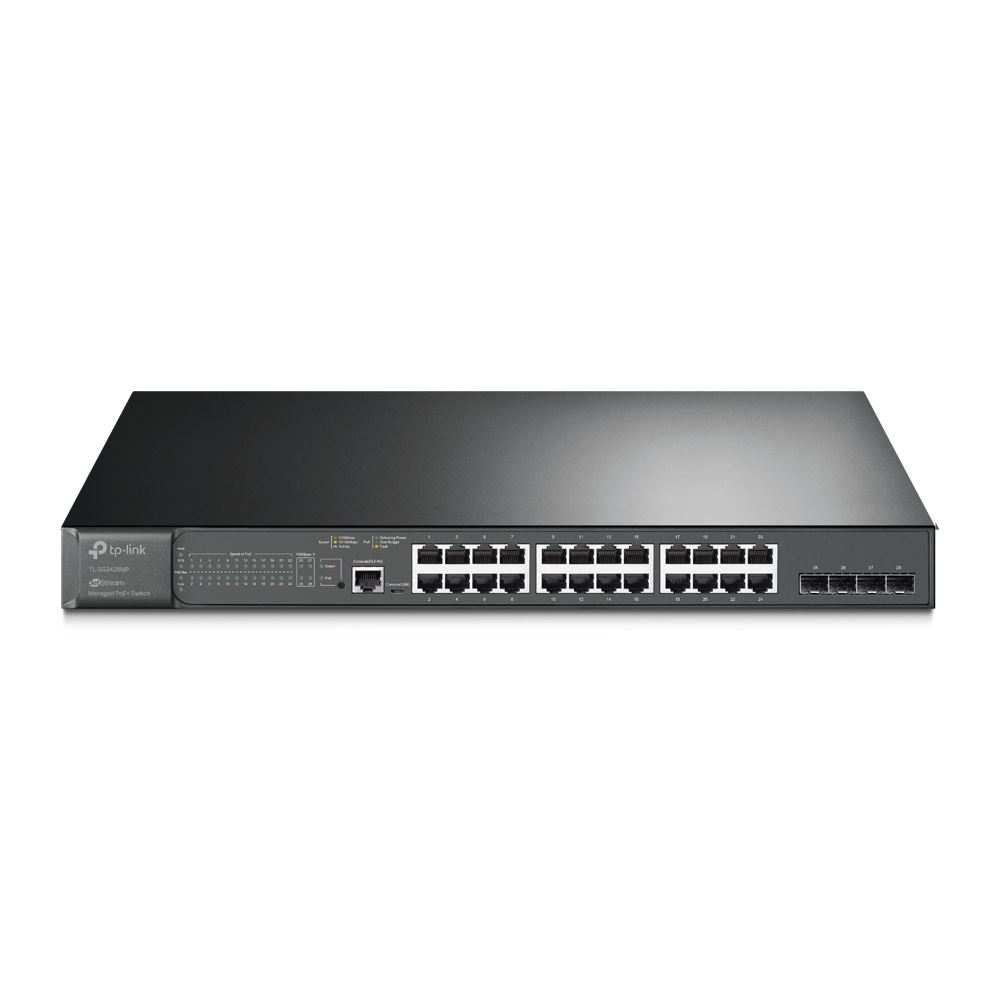

JetStream 28-Port Gigabit and 4-Port L2

20.487,26 TRY

Son fiyat kontrolü: 08.05.2026 09:28

Ürün Açıklaması

DONANIM ÖZELLİKLERİArabirim ? 24× 10/100/1000Mbps RJ45 Ports? 4× Gigabit SFP Slots? 1× RJ45 Console Port? 1× Micro-USB Console PortFan Sayısı 2Güç Kaynağı 100-240 V AC~50/60 HzPoE+ Portları (RJ45) ? Standard: 802.3at/af compliant? PoE+ Ports: 24 Ports, up to 30 W per port? Power Budget: 384 WBoyutlar ( W X D X H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)Montaj Rack MountableMaks. Güç Tüketimi ? 31.0 W (110 V/60 Hz) (no PD connected)? 463.8 W (110 V/60 Hz) (with 384 W PD connected)Max Heat Dissipation ? 105.78 BTU/h (110 V/60 Hz) (no PD connected)? 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)PERFORMANSAnahtarlama Kapasitesi 56 GbpsPaket Yönlendirme Hızı 41.66 MppsMAC Adres Tablosu 8KJumbo Frame 9 KBYAZILIM ÖZELLİKLERİQuality of Service ? 8 priority queues? 802.1p CoS/DSCP priority? Queue scheduling- SP (Strict Priority)- WRR (Weighted Round Robin)- SP+WRR? Bandwidth Control- Port/Flow based Rating Limiting? Smoother Performance? Action for Flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS RemarkL2 ve L2+ Özellikleri ? Link Aggregation- Static link aggregation- 802.3ad LACP- Up to 8 aggregation groups and up to 8 ports per group? Spanning Tree Protocol- 802.1d STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect,Loop Protect? Loopback Detection- Port-based- VLAN based? Flow Control- 802.3x Flow Control- HOL Blocking Prevention? Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Tx/Rx/BothL2 Multicast ? Supports 511 (IPv4, IPv6) IGMP groups? IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- IGMP Authentication? IGMP Authentication? MVR? MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config- Limited IP Multicast? Multicast Filtering: 256 profiles and 16 entries per profileVLAN ? VLAN Group- Max 4K VLAN Groups? 802.1q Tagged VLAN? MAC VLAN: 12 Entries? Protocol VLAN: Protocol Template 16, Protocol VLAN 16?...
