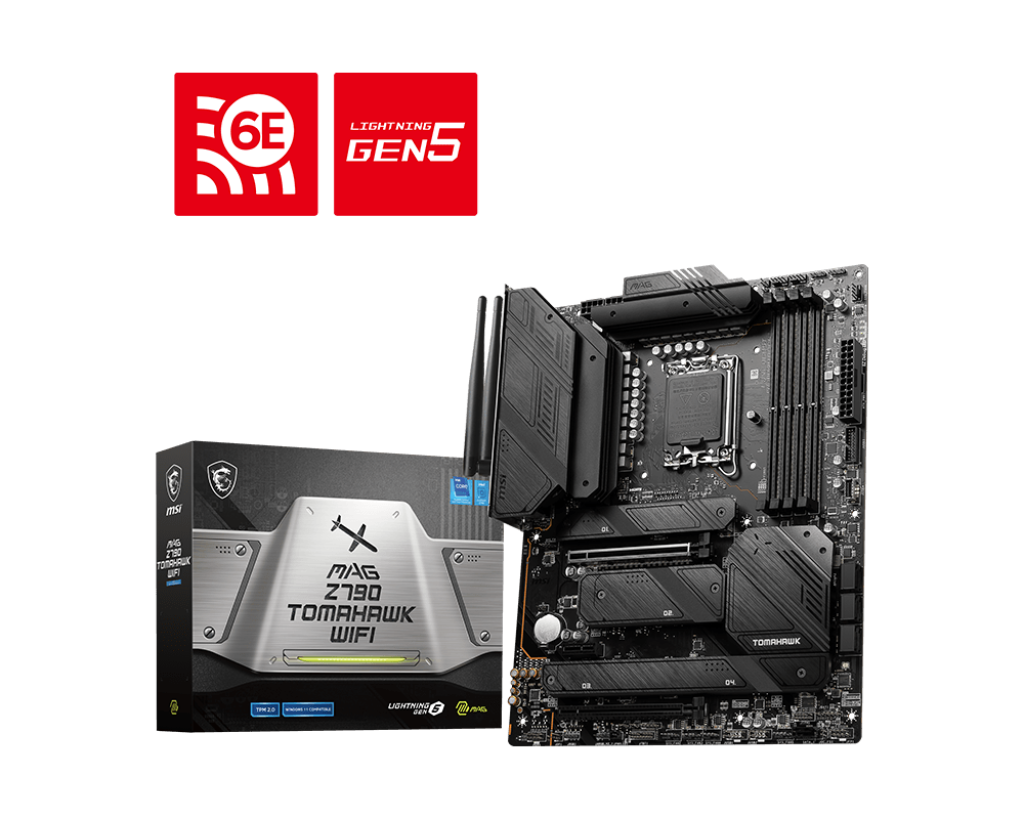

Msi MAG Z790 TOMAHAWK WIFI Sc-1700 DDR5 Z790 DDR5 7200Mhz M.2 2.5Gbit Wi-Fi 6E ATX INTEL Anakart

Ürün Açıklaması

CHİPSETINTEL Z790CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsMEMORY4x DDR5, Maximum Memory Capacity 192GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memoryONBOARD GRAPHİCS1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.SLOT2x PCI-E x16 slot (Qty)Supports x16/x41x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)STORAGE4x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices7x SATA 6G (Qty)RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* SATA_A1_A2 do not support RAID function.USB4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)4x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)LANIntel® 2.5Gbps LANWIRELESS LAN & BLUETOOTHIntel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX,...
