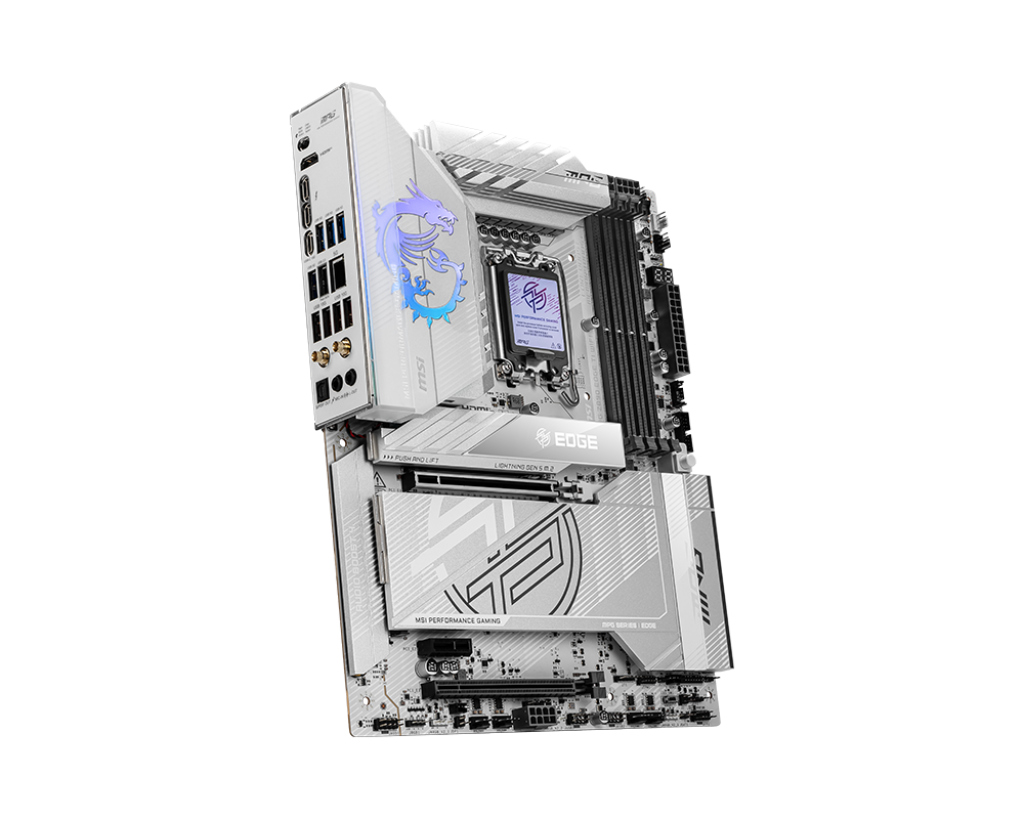

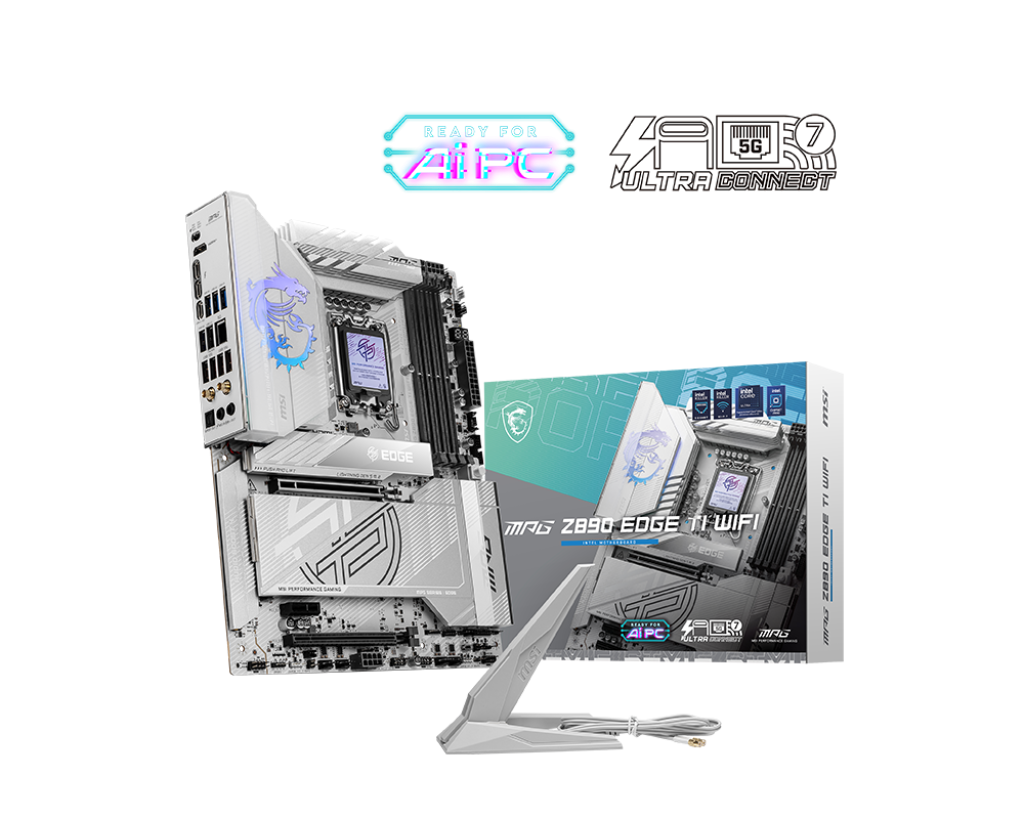

Msi MPG Z890 EDGE TI WIFI Sc-1851 Z890 DDR5 9200Mhz 5xM2 5Gbit LAN WIFI7 20Gbps USB ATX INTEL Anakart

Ürün Açıklaması

Msi MPG Z890 EDGE TI WIFI Sc-1851 Z890 DDR5 9200Mhz 5xM2 5Gbit LAN WIFI7 20Gbps USB ATX INTEL Anakart ChipsetINTEL Z890CPUSupports Intel® Core™ Ultra Processors (Series 2)LGA 1851Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9200+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 4800+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports Intel POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.Onboard Graphics1x HDMI™Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*2x Type-C DisplayPortThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4AudioRealtek® ALC1220P Codec7.1-Channel High Definition AudioSupports S/PDIF outputStorage5x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_5 Sourc...
