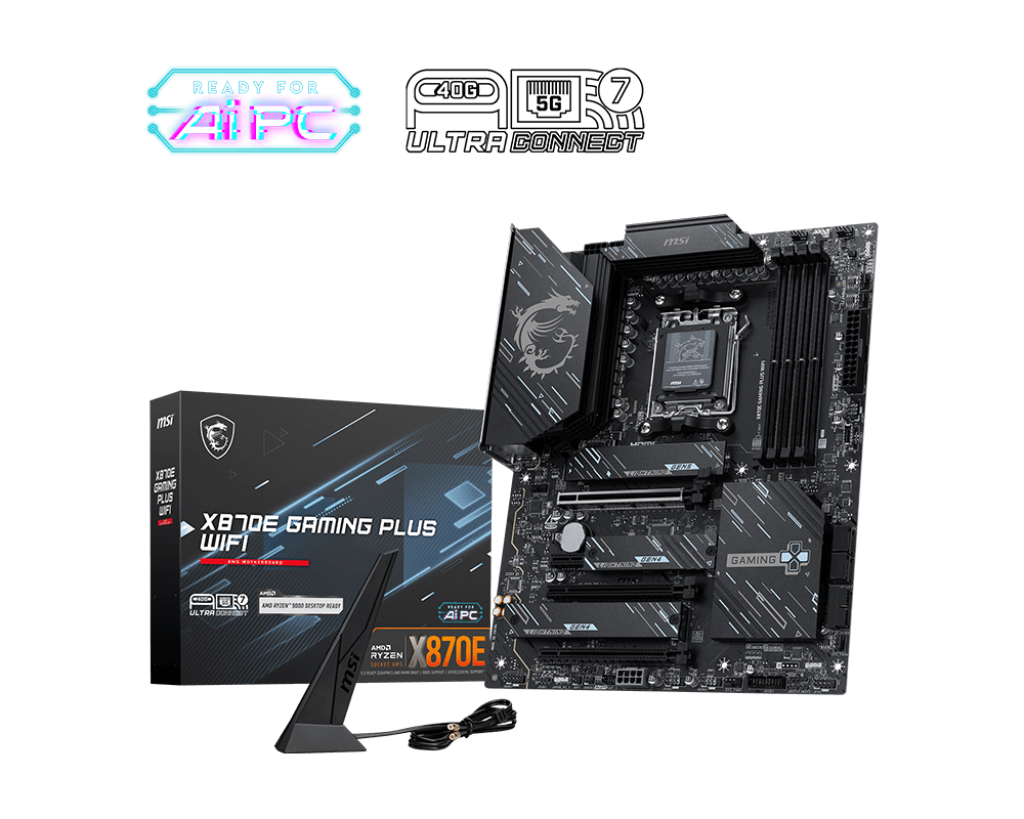

Msi X870E GAMING PLUS WIFI Sc-AM5 DDR5 8200Mhz 3xM.2 5Gbit Lan Wi-Fi7 RGB ATX AMD Anakart

Ürün Açıklaması

Msi X870E GAMING PLUS WIFI Sc-AM5 DDR5 8200Mhz 3xM.2 5Gbit Lan Wi-Fi7 RGB ATX AMD Anakart ChipsetAMD X870ECPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 6000+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.• The DIMM slots on this motherboard have double-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.Onboard Graphics1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x Type-C DisplayPortUSB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)AudioRealtek® ALC8977.1-Channel Hig...
