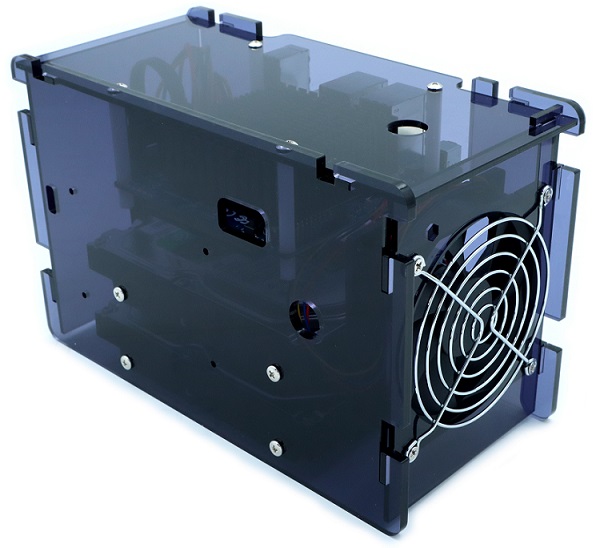

ODROID-H2 Case Type 5

Ürün Açıklaması

AÇIKLAMALARBu ürün, yüksek performanslı bilgi işlem sistemi için yüksek kapasiteli depolamalara sahip, yüksek bant genişliğine sahip ağa ihtiyaç duyan kullanıcılar için tasarlanmıştır. Disk sürücülerinden ve ODROID-H2+'dan ısınan havayı dışarı üflemek için muhafazanın yan tarafına bir adet 92 mm standart PC soğutma fanı uygulanmıştır.Özellikler This “Case Type 5” is designed for the user who needs high bandwidth network with the high capacity storages for the high performance computing system. One 92mm standard PC cooling fan is applied to the side of the enclosure in order to blow out the heated air from the disk drives and the ODROID-H2+.Supported storages:On-board eMMC 5.1 moduleOn-board M.2 NVMe (NGFF-2280)Up to 2 x 3.5” SATA HDD (At least 1 drive must be mounted in order to securely hold the enclosure structure)SATA Data & Power cables must be purchasedThis case is compatible with the H2 Net Card, which is not included in the package.The disk drive mounting screws (#6-32x10mm) are included in the package.The power and reset switches are accessible through the hole at the frontOptional LED Power Button (diameter: 16mm) can be installed at the frontSize : 120 (L) x 136 (W) x 152 (H) mm Package contents:A. 1 x 92x92x25mm DC 5V Cooling FanB. Front panelC. Top panelD. Cooling fan panelE. Side lock pieceF. Rear panelG. Side panelH. 1 x 92mm Stainless Cooling Fan GrillI. 2 x 40mm (F/F) PCB SupportsJ. 2 x 40mm (M/F) PCB SupportsK. 4 x 10mm (M/F) PCB SupportsL. 8 x 10mm #6-32 Round Head ScrewsM. 4 x 6mm M3 Truss Head BoltsN. 4 x M5 PC Fan Screws *Please mind that photo includes spare parts image for some supports and screws. Standard part quantity for this product is same as Package contents description above. Optional accessoryI2C 20×4 LCD ModuleLED Power Button16Port I2C GPIO BoardH2 Net Card Mechanical drawingshttps://dn.odroid.com/temp/box/ODROID-H2_TYPE5_3T.dxfhttps://dn.odroid.com/temp/box/ODROID-H2_TYPE5_5T.dxf
