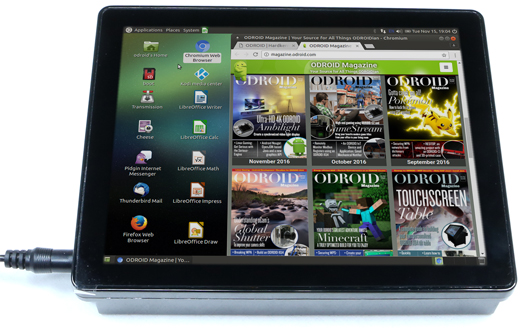

ODROID-VU8C : 8inch Touch Display Shell Kit

Ürün Açıklaması

ODROID-VU8C : 8inch Touch Display Shell Kit8inch multi-touch screen for ODROID-C2 and C1+It gives users the ability to create all-in-one, integrated projects such as tablets, game consoles, infotainment systems and embedded systems.Just input a 5V/4A DC to the LCD Shell and power up the C2 and C1+ as well as display.This high-quality wide viewing angle LCD touchscreen is specifically designed to work with both Android and Linux on the ODROID-C1+ and ODROID-C2.Specifications- 8-inch TFT-LCD- Screen Resolution: 1024x768 pixels (4:3 ratio)- 10 finger capacitive touch input (USB ID 18D1:4E12)- Back-light brightness control with ODROID GPIO PWM- Max Power consumption : 1.1A/5Volt (Only LCD and display controller)- Viewing angle : Left 75, Right 75, Up 75, Down 75 degree- Screen Dimensions : 189 x 149 x 29 mm- Viewable screen size : 162 x121.5 mm (active area)Detail WiKi guide :https://wiki.odroid.com/accessory/display/vu_series/vu8/vu8Package includeA. Assembled 8inch TFT LCD + 10 points multi touch screenB. Plastic bottom caseC. Converter boardD. HDMI dual gender boardE. 8 x 3.5mm screwsF. 2port jumper cableG. Micro-to-Micro USB Cable (approx. 8cm)H. Micro-to-TypeA USB Cable (approx. 20cm)** 5V/4A Power supply is sold separatelyPlease read our WiKi guide if you need any driver configuration.Ethernet port and 2x USB host portsVent hole and cutting line for the 40pin GPIO port.5V/4A PSU inputASSEMBLY GUIDEPlease take special care when assemble it.Plug the HDMI dual gender board to the converter board. It is easier to fit the HDMI dual gender board with this angle.Plug it tight. Check the connector.Plug the ODROID-C2 / C1+ to the other connector on the HDMI dual gender board.Plug it tight for stable HDMI connectivity.The HDMI signal is connected.Skip this process if backlight control is not necessary.Add the script to ?/etc/rc.local? in your source code for backlight control.https://wiki.odroid.com/accessory/display/vu_series/vu8/vu8Plug the jumper cable to the GPIO pin #3...
