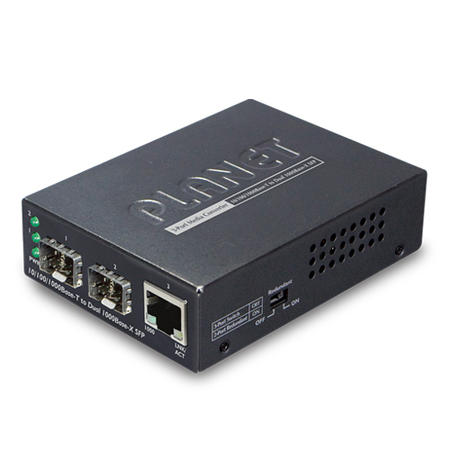

Planet PL-GT-1205A 100/100/1000Base-T To Dual 1000Base-X Sfp Media Converter

Ürün Açıklaması

10/100/1000Base-T to Dual 1000Base-X SFP Media Converter StandardComplies with IEEE 802.3 10Base-TComplies with IEEE 802.3u 100Base-TXComplies with IEEE 802.3ab 1000Base-TComplies with IEEE 802.3z 1000Base-SX / LXIEEE 802.3x Full-duplex Flow-Control, Back-Pressure in Half-duplex eliminate packets lossInterfaceDual 1000Base-SX / LX SFP Fiber-Optic SlotsOne 10/100/1000Base-T Copper, auto MDI/MDIX functionAuto-Negotiation for 10/100/1000Base-T; Half-duplex or Full-duplex for 10Mbps and 100Mbps, Full-duplex for 1000MbpsSupports maximum frame size up to 1522 bytesIEEE 802.1Q Tag VLAN Transparent, Multicast pass-throughRedundancy- When the Primary-Port link fail occurs, the traffic swaps to Backup-Port automatically- Once the Primary-Port link regains, the traffic swaps from the Backup-Port to the Primary-PortLink status auto-detecting and redundant on Dual ports with the same connector typeAllows only the Primary-Port or the Backup-Port active at a timeHardware fiber port redundantMechanicalExternal 5V / 2A DC power supplyLED indicators for easy network diagnoseDIP switch for 3-port operation with Gigabit switch mode or redundant modeCompact in size, easy installationCo-works with PLANET 10”/19” Media Converter Chassis (MC-700 / MC-1500 / MC-1500R / MC-1500R48)Wall mounting and DIN-Rail installation supported
