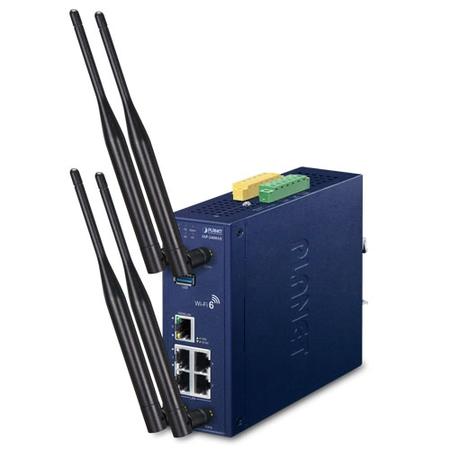

Planet PL-IAP-2400AX 5 Port Gigabit LAN Port 5Ghz 2400Mbps Access Point
Ürün Açıklaması
Planet PL-IAP-2400AX 5 Port Gigabit LAN Port 5Ghz 2400Mbps Access PointHardware SpecificationsInterfaces5 10/100/1000BASE-T RJ45 Ethernet ports including4 LAN ports (Ports 1 to 4)1 WAN/LAN port (Port 5)Wireless ConnectorBuilt-in four RP-SMA female connectorsUSB Port1 USB 3.0 portDI & DO Interfaces2 Digital Input (DI):Level 0: -24V~2.1V (±0.1V)Level 1: 2.1V~24V (±0.1V)Input Load to 24V DC, 10mA max.2 Digital Output (DO):Open collector to 24V DC, 100mA max.ConnectorRemovable 6-pin terminal block for power inputPin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2Reset Button< 5 sec: System reboot> 10 sec: Factory defaultEnclosureIP30 metal caseInstallationDIN-rail, desktop, wall-mountingDimensions (W x D x H)50 x 135 x 135 mmWeight787gPower Requirements – DC9~54V DC, 1.8APower ConsumptionMax. 5.9 watts/ 20BTU (No Loading at DC 54V)Max.10.8 watts/ 36BTU (Full loading at DC 54V)LED IndicatorsSystem:P1 (Green)P2 (Green)Alarm (Red)I/O (Red)Ethernet Interfaces (Ports 1-4 LAN Port and Port 5 WAN/LAN Port):1000 LNK/ACT (Green)10/100 LNK/ACT (Amber)Wi-Fi:5GHz(Green)Wireless SpecificationsStandardIEEE 802.11a/an/ac/ax 5GHz (4Tx4R)Band Mode5GHz concurrent modeData Modulation802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)Antenna4 dBi external antennas with RP-SMA male connectors for Wi-FiFrequency Range5GHzAmerica FCC: 5.180~5.240GHz, 5.745~5.825GHzEurope ETSI: 5.180~5.700GHzOperating Channels5GHzAmerica FCC:Non-DFS: 36, 40, 44, 48, 149,153,157,161,165DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140Europe ETSI:Non-DFS: 36, 40, 44, 48DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140*5GHz channel list may vary in different countries according to their regulations.Channel Width20MHz, 40MHz, 80MHz, 160MHzData Transmission RatesTransmit: 2400 Mbps* for 5 GHzReceive: 2400Mbps* for 5 GHz*The estimated transmission...
