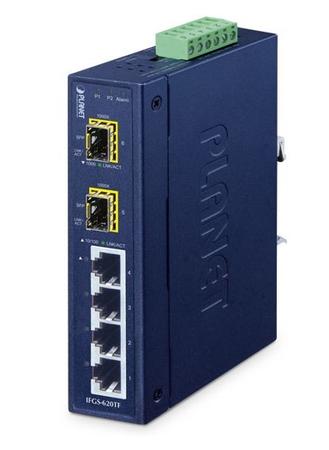

Planet PL-IFGS-620TF 4 Port 10/100Mbps 2 Port SFP Endüstriyel Switch

Ürün Açıklaması

Planet PL-IFGS-620TF 4 Port 10/100Mbps 2 Port SFP Endüstriyel Switch Hardware SpecificationsCopper Ports4 x 10/100BASE-TX RJ45 TPAuto-MDI/MDI-X, auto-negotiationSFP Slots2 x 1000BASE-X SFP interfacesDIP SwitchDIP SwitchPositionFunctionModeOFFRingON (default)Switch ModeNote :1.Power off the IFGS-620TF before adjusting the DIP switch and then power it on.2.The Ring function can reach simple Ring network with 8 units, the recovery time of data link can be as fast as 1ms.3.Ring performance may vary depending on the length of the fiber optic and UTP cables.ConnectorRemovable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failureAlarm Relay current carry ability: 1A @ DC 24VESD Protection±6KV air gap discharge±6KV contact dischargeSurge Immunity6KV DCEnclosureIP30 type metal caseInstallationDIN-rail kit and wall-mount earDimensions (W x D x H)32 x 87.8 x 135mmWeight430gPower RequirementsDC 9~48V or AC 24VRedundant power with reverse polarity protectionPower Consumption / Dissipation3.4watts/11.6BTULED3 x LED for System and Power:?Green: DC Power 1?Green: DC Power 2?Red: Alarm2 x LED for Per Copper Port (Port-1~Port-4):?Green: 10/100 LNK/ACT1 x LED for Per SFP interface (Port-5~Port-6)?Green: 1G LNK/ACTSwitch SpecificationsSwitch Processing SchemeStore-and-ForwardSwitch Fabric4.8GbpsThroughput (packet per second)3.57Mpps@64bytesAddress Table4K entriesJumbo Frame16K bytesFlow ControlBack pressure for half duplexIEEE 802.3x pause frame for full duplexStandards ConformanceStandards ComplianceIEEE 802.3 EthernetIEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit EthernetIEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXIEEE 802.3x Full-Duplex Flow ControlIEEE 802.1p Class of Service (Works under Ring function disable)PROFINET Traffic Pass-through with QoSRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32 (Free fall)IEC60068-2-27(Shock)IEC60068-2-6 (Vibration)EnvironmentTemperatureOperati...
