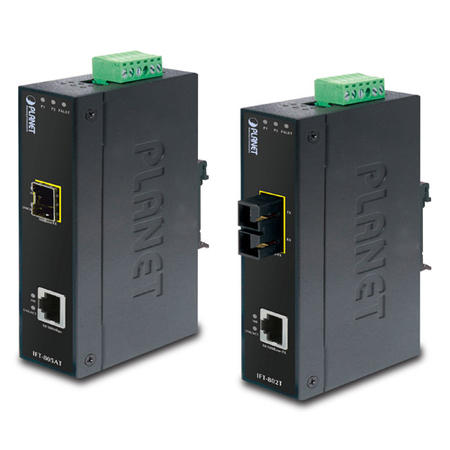

Planet PL-IFT-805AT 10/100Base-TX to 10BAse-FX Industrial Media Converter

Ürün Açıklaması

10/100Base-TX to 100Base-FX (SFP) Industrial Media Converter(-40~75 degrees C) Interface• 1-port 10/100Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function• 1 100Base-FX SC interface, providing long distance up to 2km on IFT-802T • 1 100Base-FX SC interface, providing long distance for 15km on IFT-802TS15• 1 Mini-GBIC slot, providing multi choice of SFP modules on IFT-805ATIndustrial Conformance• 12V to 48V DC, redundant power with polarity reverse protect function• -40 to 75 degrees C operating temperature• IP30 metal case• Relay alarm for port breakdown• Supports 6KV DC Ethernet ESD protection• Supports 6KV DC EFT protection for power line• Free Fall, Shock and Vibration Stability• DIN-rail and wall-mountable hardware designLayer 2 Features• Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard• Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port• Store-and-Forward Switching Architecture• Features Store-and-Forward mode with wire-speed filtering and forwarding rates• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)• Supports packet size of up to 1522bytes• CSMA/CD Protocol• Automatic source address learning and aging Hardware Specifications10/100Base-TX Port1 RJ-45 auto-MDI / MDI-X port100Base-FX PortIFT-802T: 1 SC interfaceIFT-802TS15: 1 SC interfaceIFT-805AT: 1 SFP slotFiber Port TypeIFT-802T: SC / multi-modeIFT-802TS15: SC / single-modeIFT-805AT: Vary on moduleCable DistanceIFT-802T: 2kmIFT-802TS15: 15kmIFT-805AT: Vary on moduleOptical FrequencyIFT-802T: 1310nmIFT-802TS15: 1310nmIFT-805AT: Vary on moduleLaunch Power (dBm)MaxIFT-802T: -14IFT-802TS15: 0MinIFT-802T: -20IFT-802TS15: -20Vary on moduleIFT-805ATReceive Sensitivity (dBm)IFT-802T: -32IFT-802TS15: -32IFT-805AT: Vary on moduleMaximum Input Power (dBm)IFT-802T: -14IFT-802TS15: 0IFT-805AT: Vary on moduleDimensions (W x D x H)135 x 85 x 32 mmWeight430gInstallationDIN r...
