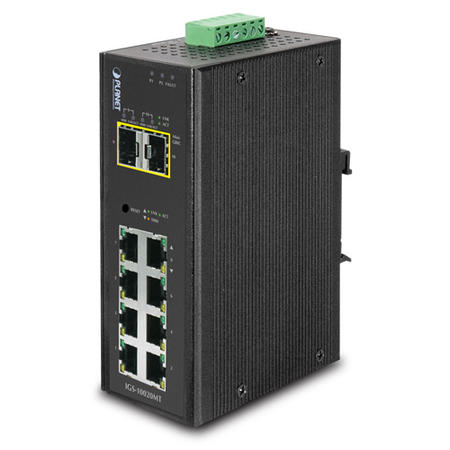

Planet PL-IGS-10020MT 8 Port 10/100 2 Port SFP Endüstriyel Tip Yönetilebilir Switch

Ürün Açıklaması

Endüstriyel Tip Yönetilebilir Switch (Industrial Managed Switch)8-Port 10/100/1000Base-T2 x 1000BASE-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ve Port-10), 100Base-FX SFP uyumluIP30, -40~75 Derece C Physical Port• 8-Port 10/100/1000Base-T RJ-45 copper• 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detectionIndustrial Case / Installation• IP30 aluminum case protection• DIN-rail and wall mount design• Redundant Power Design?- 12 to 48V DC, redundant power with polarity reverse protect function?- AC 24V power adapter acceptable• Supports EFT protection 6000 VDC for power line• Supports 6000 VDC Ethernet ESD protection• -40 to 75 degrees C operating temperatureLayer 2 Features• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth• Storm Control support?- Multicast / Unknown-Unicast• Supports VLAN?- IEEE 802.1Q Tagged VLAN?- Up to 255 VLANs groups, out of 4095 VLAN IDs?- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)?- Private VLAN Edge (PVE)?- Protocol-based VLAN?- MAC-based VLAN?- Voice VLAN• Supports Spanning Tree Protocol?- STP, IEEE 802.1D Spanning Tree Protocol?- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol?- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN?- BPDU Guard• Supports Link Aggregation?- 802.3ad Link Aggregation Control Protocol (LACP)?- Cisco ether-channel (Static Trunk)?- Maximum 5 trunk groups, up to 10 ports per trunk group?- Up to 20Gbps bandwidth (duplex mode)• Provides Port Mirror (many-to-1)• Port Mirroring of the incoming or outgoing traffic on a particular port• Supports E.R.P.S. (Ethernet Ring Protection Switching)Quality of Service• Ingress Shaper and Egress Rate Limit per port bandwidth control• 8 priority queues on all switch ports• Traffic classification?- IEEE 802.1p CoS?- IP TOS / DSCP / IP Precedence?- IP TCP/UDP...
