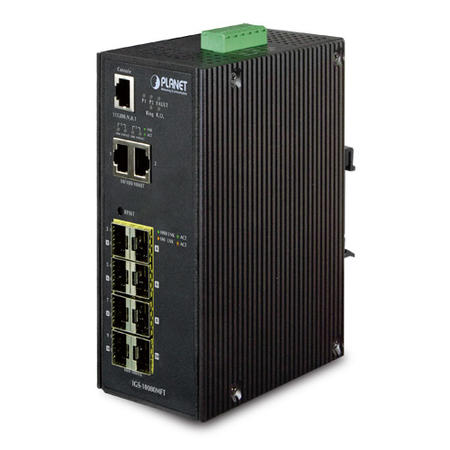

Planet PL-IGS-10080MFT 8 Port 10/100Base SFP 2 Port Gigabit Endüstriyel Yönetilebilir Switch

Ürün Açıklaması

Endüstriyel Tip Yönetilebilir Switch (Industrial Managed Switch)8 x 100/1000Base-SX/LX mini-GBIC yuva2-Port 10/100/1000TIP30, -40~75 Derece C Physical Port8 100/1000Base-SX/LX mini-GBIC SFP slots2 10/100/1000Base-T Ethernet interfaceIndustrial Case / Installation- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableIP30 Aluminum case protectionDIN-Rail and Wall Mount DesignRedundant Power DesignSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 Degree C operation temperatureLayer 2 Features- Multicast / Unknown-Unicast- IEEE 802.1Q Tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN- Protocol-Based VLAN- MAC-Based VLAN- Voice VLAN- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 5 trunk groups, up to 10 ports per trunk group- Up to 20Gbps bandwidth(Duplex Mode)Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupports Spanning Tree ProtocolSupports Link AggregationProvides Port Mirror (many-to-1)Port Mirroring to monitor the incoming or outgoing traffic on a particular portSupports E.R.P.S. (Ethernet Ring Protection Switching, *Function to expect in future)Quality of Service- IEEE 802.1p CoS- IP TOS / DSCP / IP Precedence- IP TCP/UDP port number- Typical network applicationIngress Shaper and Egress Rate Limit per port bandwidth control8 priority queues on all switch portsTraffic classificationStrict priority and Weighted Round Robin (WRR) CoS policiesSupport...
