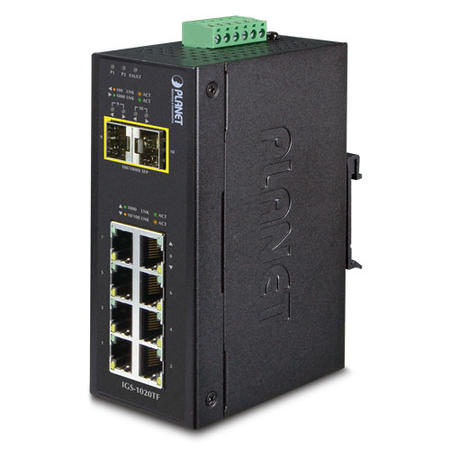

Planet PL-IGS-1020TF 8 Port Gigabit 2 Port SFP Endüstriyel Yönetilebilir Switch

Ürün Açıklaması

Endüstriyel Tip Yönetilemeyen Switch (Industrial Unmanaged Switch)8-Port 10/100/1000Mbps2 x 1000BASE-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ve Port-10), 100Base-FX SFP uyumluIP30, -40~75 Derece C Physical Port8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver type auto-detectionIndustrial Case and Installation- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableIP30 metal case protectionDIN rail and wall mount designRedundant Power DesignSupports 6000V DC Ethernet ESD protection-40 to 75 degrees C operating temperatureSupports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) Hardware Specifications Copper Ports8 x 10/100/1000BASE-T RJ45 TPAuto-MDI/MDI-X, auto-negotiationSFP/mini-GBIC Slots2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)Compatible with 100BASE-FX SFPSwitch Processing SchemeStore-and-ForwardSwitch Fabric20Gbps (non-blocking)Switch Throughput (packet per second)14.88Mpps@64bytesMAC Address Table4K entriesFlow ControlBack pressure for half duplexIEEE 802.3x pause frame for full duplexJumbo Frame9216 bytesConnectorRemovable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failureAlarm Relay current carry ability: 1A @ DC 24VLED Indicator3 x LED for System and Power:Green: DC Power 1Green: DC Power 2Red: Power Fault2 x LED for Per Copper Port (Port-1~Port-8):Green: 1000 LNK/ACTOrange:100 LNK/ACT2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10):Green: 1000 LNK/ACTOrange:100 LNK/ACTESD Protection6KV DCEnclosureIP30 type metal caseInstallationDIN rail kit and wall-mount earDimensions (W x D x H)56 x 87 x 135 mmWeight540gPower RequirementsDC 12~48V or AC 24VRedundant power with polarity reverses protection functionPower Consumption/Dissipation8.7 watts/29.69BTUCableTwisted-pair? 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters? 100BASE-TX: 2-pair...
