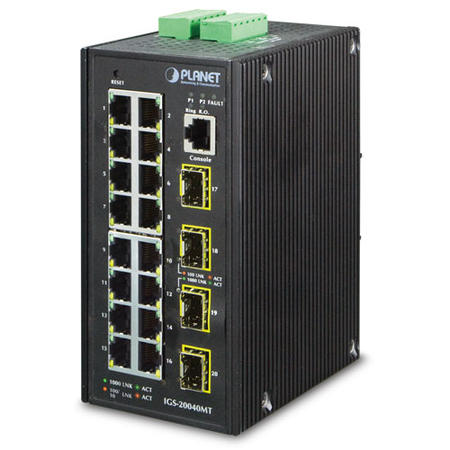

Planet PL-IGS-20040MT 16 Port 1000T 4 Port SFP L2+ Endüstriyel Yönetilebilir Switch

Ürün Açıklaması

Endüstriyel Tip L2+ Yönetilebilir Switch (Industrial L2+ Managed Switch)16-Port 10/100/1000T4 x 1000BASE-SX/LX/BX SFP/mini-GBIC yuva (Port-17 ile Port-20 arası), 100Base-FX SFP uyumluIP30, -40~75 Derece C1 x Konsol port Physical Port16-Port 10/100/1000Base-T RJ45 copper4 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detectionOne RJ45 console interface for basic management and setupIndustrial Case / Installation- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableIP30 aluminum case protectionDIN-rail and wall-mount designRedundant Power DesignSupports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection-40 to 75 degrees C operating temperatureDigital Input / Digital Output2 Digital Input (DI)2 Digital Output (DO)Integrates sensors into auto alarm systemTransfers alarm to IP network via email and SNMP trapLayer 2 Features- Broadcast / Multicast / Unknown Unicast- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol by VLAN- BPDU Guard- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 10 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth(duplex mode)High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupports Spanning Tree ProtocolSupports Link AggregationProvides port mirror (many-to-1)Port Mirroring of the incoming or outgoing traffic on a particular portLoop protection to avoid broadcast loopsSupports E.R.P.S. (Ethernet Ring Protection Switching)IEEE 1588 and Synchronous Ethernet network timingQuality of Service- IEEE 802.1p CoS- IP TOS...
