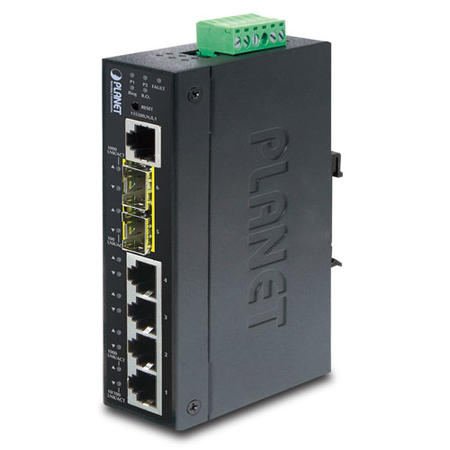

Planet PL-IGS-5225-4T2S 4 Port Gigabit 2 Port 1000Base-T SFP L2+ Endüstriyel Yönetilebilir Switch

Ürün Açıklaması

Endüstriyel Tip L2+ Yönetilebilir Ethernet Switch (Industrial L2+ Managed Ethernet Switch)4 x 10/100/1000BASE-T Gigabit Ethernet2 x 1000BASE-SX/LX/BX SFP/mini-GBIC yuva (Port-5 ve Port-6 arası), 100Base-FX SFP uyumlu1 x Konsol portIP30, -40~75 Derece C Physical Port4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detectionOne RJ45 console interface for basic management and setupIndustrial Case and InstallationIP30 metal caseDIN rail and wall-mount design12~48V DC, redundant power with polarity reverse protect function24V AC power input acceptableSupports 5000V DC Ethernet ESD protection-40 to 75 degrees C operating temperatureLayer 2 Features- Broadcast/Multicast/Unicast- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN- IEEE 802.1D Spanning Tree Protocol (STP)- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN- BPDU GuardPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupports Spanning Tree ProtocolSupports Link Aggregation- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 4 trunk groups with 4 ports per trunk group- Up to 8Gbps bandwidth (duplex mode)- Provides port mirror (1-to-1)Port mirroring to monitor the incoming or outgoing traffic on a particular portLoop protection to avoid broadcast loopsvSupports ERPS (Ethernet Ring Protection Switching)Layer 3 IP Routing FeaturesSupports maximum 32 static routes and route summarizationQuality of Service- IEEE 802.1p CoS- IP TOS/DSCP/IP precedence- IP TCP/UDP port number- Typic...
