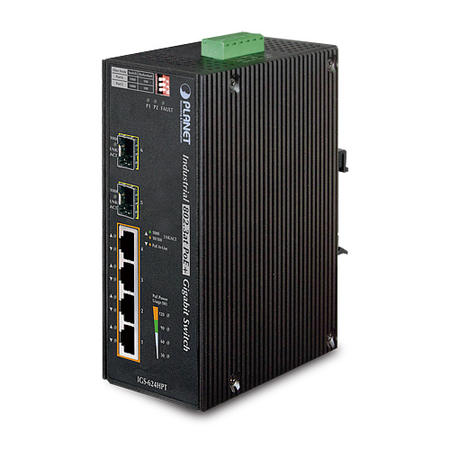

Planet PL-IGS-624HPT 4 Port Gigabit PoE+ 2 Port SFP 120W PoE Endüstiyel PoE Switch

Ürün Açıklaması

Endüstriyel Tip Yönetilemeyen PoE+ Switch (Industrial Unmanaged PoE+ Switch)4-Port 10/100/1000Base-TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 watt)2-Port 1000Base-SX/LX ve 100Base-FX SFP yuvaIP30, -40~75 Derece C Physical Port4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE Injector2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configuredPower over EthernetComplies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSEUp to 4 IEEE 802.3af / 802.3at devices poweredSupports PoE Power up to 30.8 watts for each PoE portProvides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet portAuto-detects EEE 802.3af/at equipment and protects devices from being damaged by incorrect installationRemote power feeding up to 100mLayer 2 Features Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modePrevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)Automatic address learning and address agingIndustrial Case / Installation IP30 aluminum metal case protectionDual SFP Ports Auto Link Redundant Mode SupportDIN Rail and Wall Mount Design48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave powerSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperatureHardware SpecificationsCopper Ports4 x 10/100/1000Base-T RJ-45 TPAuto-MDI/MDI-X, Auto-NegotiationSFP / mini-GBIC Slots2 x SFP interfacesSupports 1000Base-SX/LX and 100Base-FX SFP transceiversDIP SwitchDIP-1: SFP Port 5 1000Base-X (default) / 100Base-FXDIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FXDIP-3: Switch mode / Fiber Redundant modeConnectorRemovable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failAlarm Relay current...
